Dimensions for door fittings
Hole spacing and square dimensions

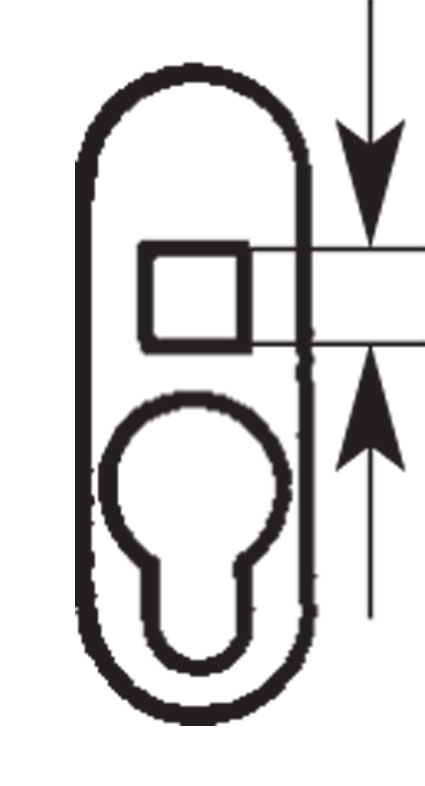

1. Dimensions of the square pins / pusher pins

Germany
8 / 10 mm
9 mm for fire protection doors
9 mm for fire protection doors

Czechia
8 mm

Belgium
8 mm

France
7 / 8 mm

Italy
8 mm

Netherlands
8 mm

Austria
8.5 mm

Poland
8 mm

Switzerland
8 / 9 mm

Slovenia
9 mm

Hungary
8 mm

Spain
8 mm

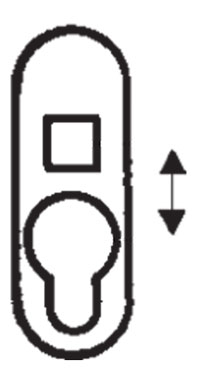

2. distance handle / knob to center hole
- SD = middle of lock follower to middle of key arbor
- PZ = center lock follower to center profile cylinder
- RN = center lock follower to center deadbolt follower
SD
PZ
RN




Germany
72 mm
72, 92 mm
78 mm

Czechia
72, 90 mm
72, 92 mm
90 mm

Belgium
72, 90, 110 mm
72, 85, 92, 110 mm
78, 116 mm

France
70 mm
70 mm
70 mm

Italy
90 mm
85 mm
-

Netherlands
56, 72 mm
55, 72 mm
63 mm

Austria
90 mm
88 mm
90 mm

Poland
55, 72, 90 mm
55, 72, 85, 90 mm
55, 78, 90 mm

Switzerland
78 mm
72 mm
78 mm

Slovenia
72, 90 mm
72, 90 mm
90 mm

Hungary
55, 72, 90 mm
55, 72, 90 mm
55, 90 mm

Spain
*1
85 mm
34 mm
*1 = blind shield
3. Square pin for WC

Germany
8 mm

Czechia
6 / 8 mm

Belgium
8 mm

France
6 mm

Italy
-

Netherlands
8 mm

Austria
7 mm

Poland
8 mm

Switzerland
8 mm

Slovenia
7 mm

Hungary
8 mm

Spain
5 mm
