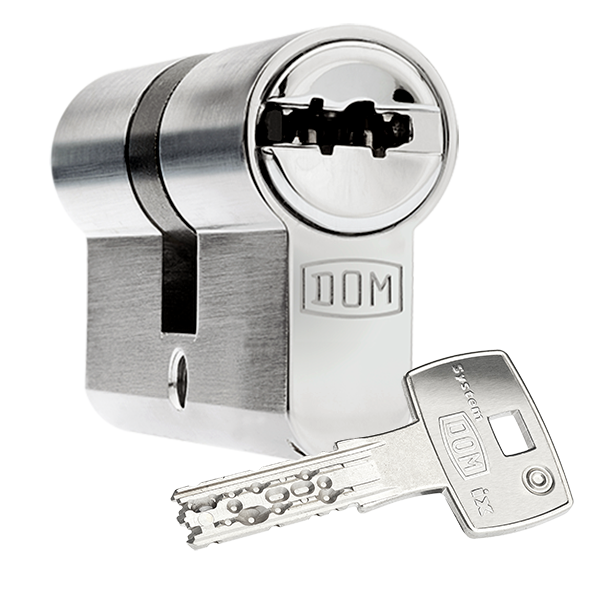

DOM ix Saturn
"limitless possibilities"
The DOM ix Saturn locking system guarantees a high standard of security. The basic mechanical system can be modularly expanded with electronic components, thus combining the advantages of mechanics with the benefits of electronics - according to individual customer requirements.
This system is available for reorders only.
For new systems we recommend the successor series DOM ix TwinStar®.
Technical characteristics:
- high level of protection against manipulation thanks to 18-fold locking authorisation queries (locking system: 24)

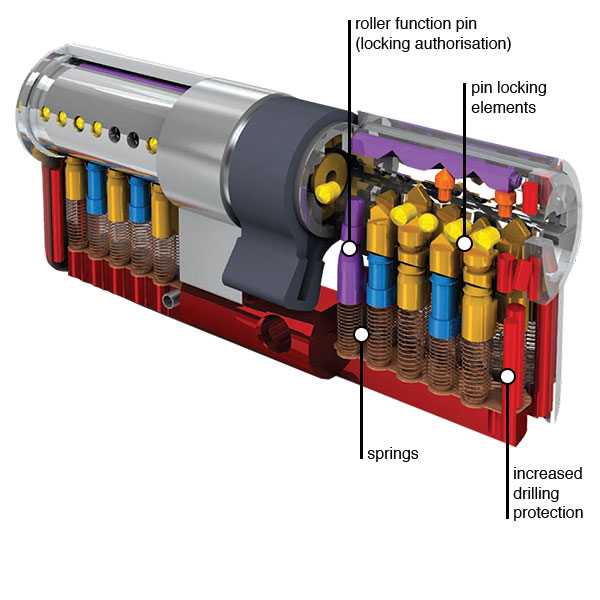

- 9 rotating locking elements and one moveable locking strip locking element
- solid pin locking elements made of special brass or hardened steel
- standard drilling protection
- optional highest possible VdS class BZ+ (with modular design)
- single/ keyed alike locks with emergency and danger function (locking on both sides)
- up to 10 solid profile control pins
- 13 mm core diameter
- one-piece cam made of sintered steel
- locking security class according to DIN EN 1303:6
- attack resistance class according to DIN EN 1303:2
- VdS security class 3
- patent protection until 2023
Execution:
- cylinder body made of solid brass
- finish: dull nickel
- reversible key system
- horizontal key insertion
- half cylinder: cam position adjustable in 8 positions
- half cylinder: cam is delivered in 7.00 o'clock position, can be moved to all positions in 45 degree increments
- compatible with DOM electronics (made possible by integrating passive transponder technology into the key bow via clip tag)

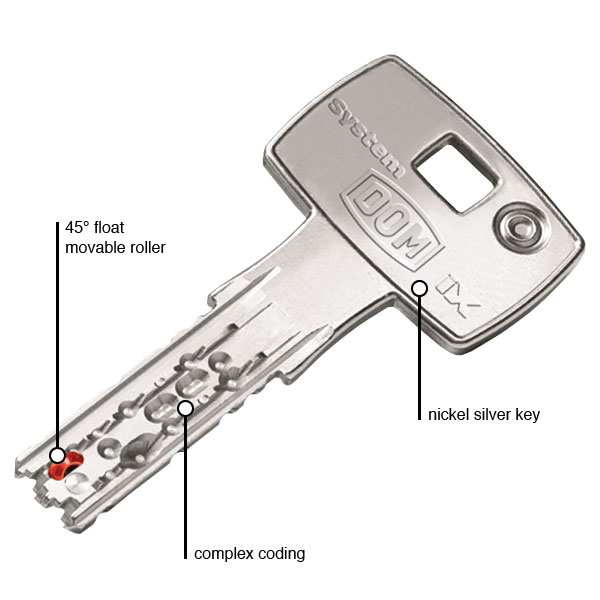

Key:
- key thickness: 2,4 mm
- nickel silver reversible key: corrosion-free and low-wear
- active copy protection through movable rolling elements in the key tip (patented), making it difficult to make duplicate keys
- 45° float movable roller makes the production of key copies almost impossible
- no key blanks available on the market
Operational area:
- single family houses with high protection requirements
- apartments
- medium to very large companies
- public buildings
Options / Special equipment:
- different cylinder finishes (polished brass, oxidized bronze)
- increased drilling protection + modular design = VdS BZ+ (VdS***)
- freewheel
- weather protection
- 2-in-1 system
Explanations on the optional extras:
Drilling protection VdS BZ+ = high safety for special requirements:
in cooperation with the police, VdS Schadenverhütung GmbH has developed a star system that divides mechanical locking systems into three different security classes, thus providing you with a quick overview of the respective security level.
- recognition by VdS Schadesverhütung GmbH
- VdS checks locking systems and awards recognition from A to BZ+
- drilling protection VdS BZ+ = VdS security class 3
- VdS BZ+: increased protection against drilling and core pulling due to carbide pins in cylinder body and cylinder core arranged in several planes
- this drilling protection variant is manufactured in modular technology with increased tear-off protection
- modular design as 2-in-1 variant has drilling protection VdS BZ
Cylinder finishes:
- finishes (polished brass, oxidized bronze)
- standard finish: dull nickel
- for individual design requirements
- if desired, homogeneous appearance of door cylinder and fitting
Please note:
If a different cylinder finish, different from the standard finish, is ordered, extended production times may occur.
If a different cylinder finish, different from the standard finish, is ordered, extended production times may occur.
dull nickel
polished brass
oxidized bronze
Seawater resistance:
- for use under marine climate or salty atmosphere
- fixing screw pure brass, cam sintered steel (chemically nickel plated)
- cylinder finish: matt chrome
- restrictions possible in combination with other optional equipment
- in combination with freewheel: clutch not protected against seawater
Freewheel:
Free-running cylinders are those profile cylinders that have a freely rotating cam.
The cam can be moved freely through 360° when no key is inserted. DOM freewheel cylinders comply with DIN EN 18252:2006-12.
When the key is inserted, the spring-loaded clutch engages in the cam. The cylinder can then be locked in the conventional way with the key.
- from cylinder length: 35,5/35,5 mm
- usually only necessary for special panic or automatic locks. If in doubt, please check with the door manufacturer.
- for multiple locking systems with panic function: latch and deadbolt must be moved into the lock body when the doors are closed. To ensure this, the cam must be able to turn freely.
- in motor-driven locks and special escape door locks
- restrictions in combination with other special equipment possible
- with this option the cylinder has no emergency and danger function
- freewheel function is tested according to FZG (test guideline for profile cylinders with freewheel function for gear locks in escape door locks)
2-in-1 system
The DOM system is prepared at the factory for a second lock, which the customer can call up himself if required. With the second set of keys the locking cylinder can be easily recoded. A 360° turn in the cylinder - and the new lock is activated. The old keys are thus easily rendered ineffective.
- 2 x 3 keys, 2-in-1 recodable
- number of keys per key set selectable
- with this option standard drilling protection VdS B, with modular design VdS BZ
- please note that it cannot be reset! After the 1st locking with the 2nd key set, the 1st key set is deactivated forever!
