DOM ix Teco® (7TE)
"Easy access to superior security"
The new ix Teco® reversible key (commercial profile ix 7TE) is particularly well protected against unauthorized copying by an innovative additional stamped recess in the key, based on a patented technology. A special high-low (HT) milling technology in the horizontal base profile increases security during profile control and is difficult to copy. With the innovative and sophisticated design, you acquire a locking system with efficient key copy protection, which is predestined for use in the locking system, but also for individual locks.
Special features of the DOM ix Teco® - commercial profile ix 7TE
- special high-low milling
- very high technical key copy protection due to a stamped recess
- high protection against manipulation
- 20-fold locking authorisation query
- locking security class 6 according to DIN EN 1303:2015-08
- reversible key system
- horizontal key insertion
- patent protection until 2038
- protection by security card
-
DOM ix Teco® (7TE) DOM ix Teco® (7TE) double cylinder proprietary profile with production at the manufactorDelivery Time: 6 - 8 weeks
Features:
- reversible key with special high-low milling
- with additional stamped recess
- very high key copy protection
- cylinder body: brass, dull nickel
- optional emergency and danger function, modular design
-
DOM ix Teco® (7TE) DOM ix Teco® (7TE) double cylinder short proprietary profile with production at the manufactorDelivery Time: 2 - 3 weeks
Features:
- double cylinder short: from 28/35,5 mm
- reversible key with special high-low milling
- with additional stamped recess
- very high key copy protection
- cylinder body: brass, dull nickel
- optional emergency and danger function
-
DOM ix Teco® (7TE) DOM ix Teco® (7TE) knob cylinder proprietary profile with production at the manufactorDelivery Time: 2 - 3 weeks
Features:
- reversible key with special high-low milling
- with additional stamped recess
- very high key copy protection
- cylinder body: brass, dull nickel
- optional modular design
-

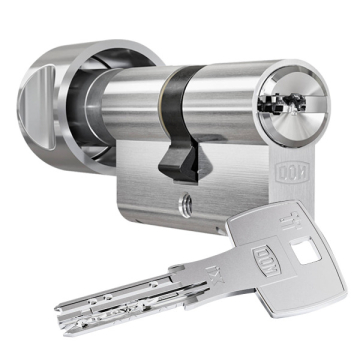

DOM ix Teco® (7TE) DOM ix Teco® (7TE) knob cylinder short proprietary profile with production at the manufactorDelivery Time: 2 - 3 weeks
Features:
- knob cylinder short: from 28/35,5 mm
- reversible key with special high-low milling
- with additional stamped recess
- very high key copy protection
- cylinder body: brass, dull nickel
-

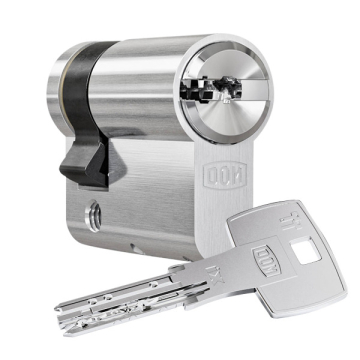

DOM ix Teco® (7TE) DOM ix Teco® (7TE) half cylinder proprietary profile with production at the manufactorDelivery Time: 2 - 3 weeks
Features:
- reversible key with special high-low milling
- with additional stamped recess
- very high key copy protection
- cylinder body: brass, dull nickel
- optional modular design
-

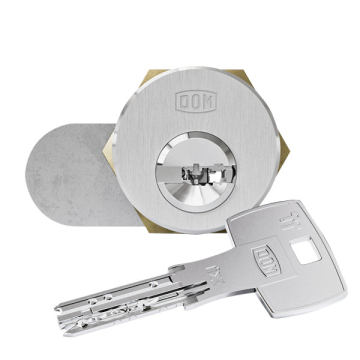

DOM ix Teco® (7TE) DOM ix Teco® (7TE) camlock cylinder proprietary profile with production at the manufactorDelivery Time: 2 - 3 weeks
Features:
- installation depth: 33,8 mm
- body length: 25,3 mm
- mounting hole: Ø 25 mm lateral reduced to 22,5 mm
- reversible key with special high-low milling
- with additional stamped recess
- very high key copy protection
- cylinder body: brass, dull nickel
-

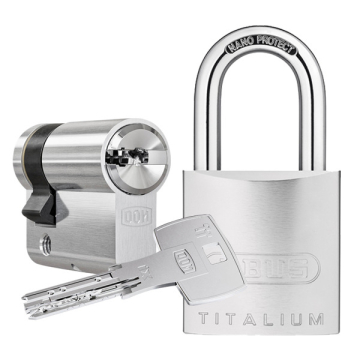

DOM ix Teco® (7TE) DOM ix Teco® (7TE) half cylinder + ABUS padlock 86TI/45 proprietary profile with production at the manufactorDelivery Time: 2 - 3 weeks
Features:
- massive lock body made of TITALIUM™ special aluminium
- standard shackle height: 32,5 mm, Ø 8 mm
- case width: 46,5 mm
- forced locking
- reversible key with special high-low milling
- with additional stamped recess
-
-
