DOM RS 8

"Protects everything with just one key"

Even a tried-and-trusted locking technology remains a challenge for DOM to improve it even further. The result is the RS 8 system, with the maximum possible resistance values guarantee the reassuring feeling of having secured doors and entrances with outstanding security. In the truest sense of the word, because a new technology with laterally applied control and stabilising ribs, gives the key extremely high copy protection.

Thus the RS 8 system offers the highest possible security in burglary protection. To secure your valuables at home, in your company or for your personal "good feeling" you can rely on it .

This system can be ordered as a locking system in our locking system configurator or as a reorder.

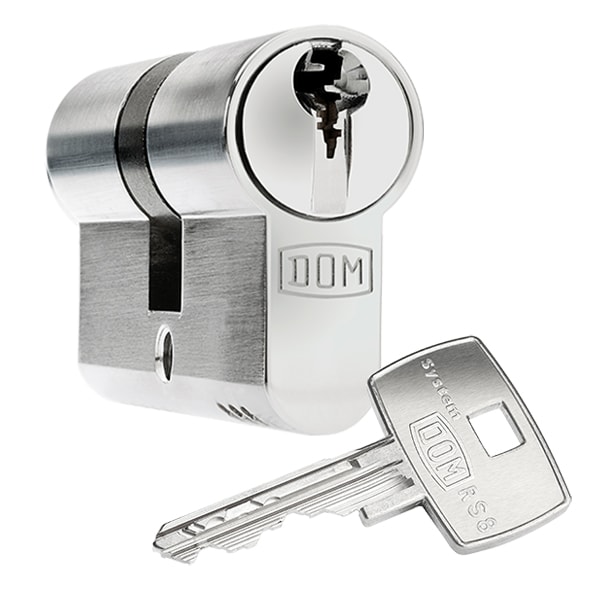

DOM RS 8DOM RS 8

Technical characteristics

  • high protection against manipulation due to 13-fold locking authorisation query
  • drilling protection as standard (locking system: anti-drill protection)
  • optional highest possible VdS class BZ+ with modular design (locking system: BZ)
  • with emergency and danger function (closing on both sides)
  • each locking side 8 spring-loaded, solid pin locking elements made of special brass or hardened steel, arranged axially in 2nd row
  • thereof 3 new additional pin locking elements
  • 16 sectionally stepped core and body pins
  • narrowed core and body pins for safety during scanning and unlocking
  • paracentric, two-part core and key profiling
  • profile segments matched at lock level
  • protected against impact picking by modified design of the pin locking elements
  • 13 mm core diameter
  • one-piece cam made of sintered steel
  • according to DIN EN 1303:2015-08, certified according to ISO 9001:2008
  • locking security class 6, attack resistance class B according to DIN EN 1303

Impact protection

The cylinder contains impact protection pins and other safety elements that prevent access by impact keys to turn the inner pins.

Opening protection

The cylinder contains specially shaped unlocking security pins that prevent opening with the help of a lock pick.

Pulling protection

The cylinder contains a special cylinder core which prevents the cylinder from being pulled out by drilling into the core.

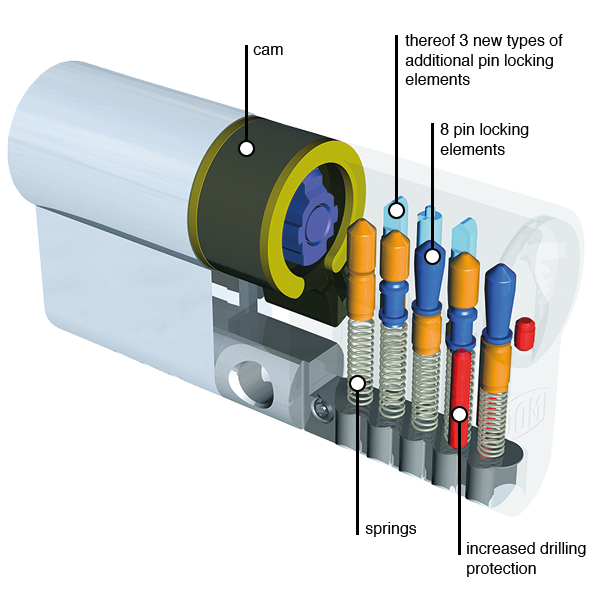

DOM RS 8 cylinder cross sectionDOM RS 8 cylinder cross section

Execution

  • cylinder body and cylinder core made of solid brass (high corrosion protection)
  • finish: dull nickel
  • serrated key system
  • vertical key insertion
  • compatible with DOM electronics (made possible by integrating passive transponder technology into the key bow via clip tag)

Operational area

  • interior doors, exterior doors, front doors, apartment doors with increased security requirements
  • single-family houses with high protection requirements
  • apartment buildings
  • medium to large companies, public buildings

Key

  • key thickness: 2,6 mm
  • nickel silver serrated key: corrosion-free and low-wear
  • key with optimized cut layers of the flank edge
  • rib on the side of the key (copy protection)
  • 3 control tracks, arranged axially offset protect against unauthorized key copies
  • complex coding in the key makes it difficult to make a duplicate key
  • patented key blanks that are not freely available on the market

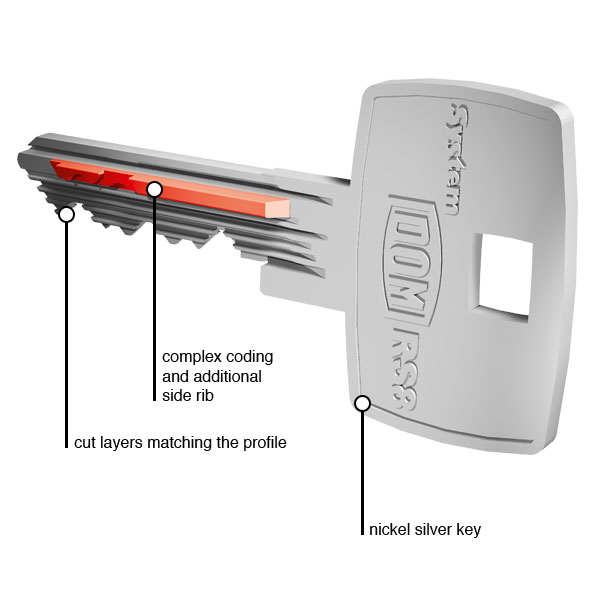

Serrated key with rib on the side

The control and stabilising ribs on the sides give the key an extremely high degree of copy protection.

DOM RS 8 keyDOM RS 8 key

Options / Special equipment

  • different cylinder finishes (polished brass, oxidized bronze, matt black chrome)
  • increased drilling protection + modular design = VdS BZ+ (VdS*** / VdS security class 3)
  • weather protection
  • freewheel (on request)

Description of the additional options

Cylinder finishes

  • finishes (polished brass, oxidized bronze, matt black chrome)
  • standard finish: dull nickel
  • matt finish on the front side only
  • for individual design requirements
  • if desired, homogeneous appearance of door cylinder and fitting
  • Please note:
    If a different cylinder finish, different from the standard finish, is ordered, extended production times may occur.

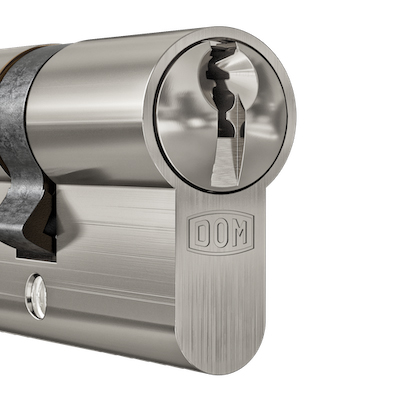

dull nickeldull nickel
dull nickel

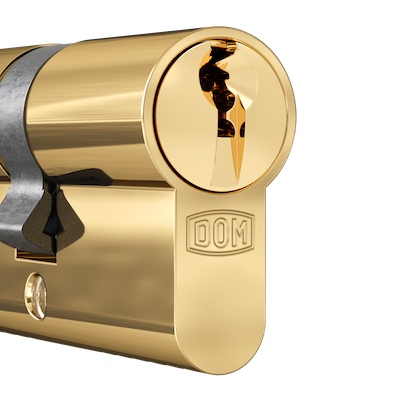

polished brasspolished brass
polished brass
oxidized bronzeoxidized bronze
oxidized bronze

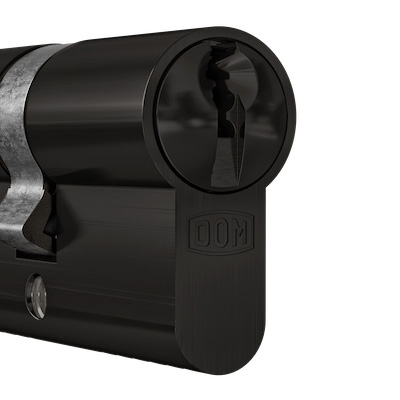

matt black chromematt black chrome
matt black chrome
VdSVdS

Drilling protection VdS BZ+ = high safety for special requirements

In cooperation with the police, VdS Schadenverhütung GmbH has developed a star system that divides mechanical locking systems into three different security classes, thus providing you with a quick overview of the respective security level.

  • recognition by VdS Schadesverhütung GmbH
  • VdS checks locking systems and awards recognition from A to BZ+
  • drilling protection VdS BZ+ = VdS security class 3
  • VdS BZ+: increased drilling and core pulling protection due to carbide pins arranged in several planes in the cylinder body and cylinder core
  • this drilling protection variant is manufactured in modular technology with increased tear-off protection
emergency and danger functionemergency and danger function

Emergency and danger function (standard)

This function enables the lock cylinder to be locked even if a key with locking authorisation is inserted on the opposite side.

seawater resistanceseawater resistance

Seawater resistance

  • for use in marine climate or salty atmosphere
  • fixing screw pure brass, cam sintered steel (chemically nickel plated)
  • cylinder finish: matt chrome
  • restrictions possible in combination with other optional equipment
  • possible from cylinder length 30,5 / 30,5 mm
  • in combination with freewheel: clutch not protected against seawater
freewheelfreewheel

Freewheel (on request)

The profile cylinders which have a freely rotating cam are designated as freewheel cylinders.
The cam can be moved freely through 360° when no key is inserted. DOM freewheel cylinders comply with DIN EN 18252:2006-12.
When the key is inserted, the spring-loaded clutch engages in the cam. This then allows the cylinder to be closed in the conventional way with the key.

  • from cylinder length: 35,5/35,5 mm
  • Usually only necessary for special panic or automatic locks. If in doubt, please check with the door manufacturer.
  • for multi-point locks with panic function: latch and bolt must be moved into the lock body when the door is closed with the handle. To ensure this, the cam must be able to turn freely.
  • in motor-driven locks and special escape door locks
  • restrictions possible in combination with other optional equipment
  • with this option the cylinder has no emergency and danger function
  • freewheel function is tested according to FZG (test guideline for profile cylinders with freewheel function for gear locks in escape door locks)

DOM Sicherheitstechnik GmbH & Co. KG
Wesselinger Straße 10-16
D-50321 Brühl/Köln
www.dom-security.com
