DOM ix 6HT

"simple to use - difficult to outsmart"

The DOM ix 6HT system is the entry into the world of reversible keys. It is a system with a multi-stage security concept that offers a high level of protection through the interaction of many technical details. A special high-low milling (HT) in the horizontal basic profile provides additional security during profile control and is extremely difficult to copy. This quality product from DOM achieves protection against mechanical manipulation by using high-strength materials.

This system is available for reorders only.

For new systems we recommend the series DOM ix Teco® (7TE).

DOM ix 6HTDOM ix 6HT

Technical characteristics

  • high protection against manipulation by 19-fold locking authorisation query
  • anti bumping (impact key protection) & anti picking pins (picking protection)
  • up to 12 horizontal and vertical profile control pins: control points for the authorization query of a key
  • 6 spring-loaded pin locking elements on each locking side, axially arranged, made of special brass/hardened steel offer protection against manipulation
  • 12 core and body pins
  • narrowed core and body pins for safety during scanning and unlocking
  • drilling protection (standard): 2 hardened steel pins in the body, 1 hardened steel pin in the cylinder core
  • 13 mm core diameter
  • one-piece cam made of sintered steel
  • concave core head as key insertion aid
  • according to DIN EN 1303:2015-08, certified according to ISO 9001:2015
  • locking security class 6, attack resistance class B (locking system class C) according to DIN EN 1303
  • patent protection until 2026
DOM ix 6HT cylinder cross sectionDOM ix 6HT cylinder cross section

Execution

  • cylinder body and cylinder core made of solid brass (high corrosion protection)
  • finish: dull nickel
  • reversible key system
  • horizontal key insertion
  • half cylinder: cam position adjustable in 8 positions
  • half cylinder: cam is delivered in 7.00 o'clock position, can be moved to all positions in 45 degree increments
  • compatible with DOM electronics (made possible by integrating passive transponder technology into the key bow via clip tag)

Operational area

  • larger residential areas
  • apartment buildings
  • small and medium-sized commercial properties

Key

  • key thickness: 2,6 mm
  • nickel silver reversible key: corrosion-free and low-wear
  • high operating comfort due to reversible key
  • new key head design
  • special high-low milling (lift-out and sloped areas) for optimal key insertion
  • complex coding in the key makes it difficult to make a duplicate key (very high key copy protection)
  • key blade length adapted to all common safety fittings
  • no key blanks available on the market

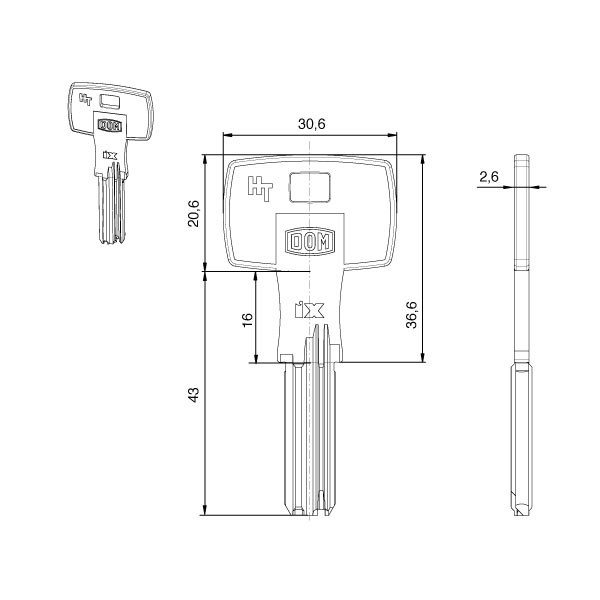

DOM ix 6HT keyDOM ix 6HT key
DOM ix Saturn keyDOM ix Saturn key

Options / Special equipment:

  • different cylinder finishes (polished brass, oxidized bronze, matt black chrome)
  • increased drilling protection
  • emergency and danger function
  • weather protection
  • modular design
  • freewheel (on request)

Beschreibung der Zusatzoptionen

Cylinder finishes (on request)

  • finishes (polished brass, oxidized bronze, matt black chrome)
  • standard finish: dull nickel
  • matt finish on the front side only
  • for individual design requirements
  • if desired, homogeneous appearance of door cylinder and fitting
  • Please note:
    If a different cylinder finish, different from the standard finish, is ordered, extended production times may occur.
dull nickeldull nickel
dull nickel
polished brasspolished brass
polished brass
oxidized bronzeoxidized bronze
oxidized bronze
matt black chromematt black chrome
matt black chrome

Increased drilling and core pulling protection:

The cylinder is provided with increased drilling and core pulling protection by means of carbide pins arranged in several planes in the cylinder body and cylinder core.

Seawater resistanceSeawater resistance

Seawater resistance

  • for use in marine climate or salty atmosphere
  • fixing screw pure brass, cam sintered steel (chemically nickel plated)
  • cylinder finish: matt chrome
  • restrictions possible in combination with other optional equipment
  • possible from cylinder length 30,5 / 30,5 mm
  • in combination with freewheel: clutch not protected against seawater
Modular designModular design

Modular design

The modular cylinder is a profile cylinder in which the different cylinder lengths can be adjusted without great time expenditure by means of suitable intermediate parts of the respective locking system. This also protects against violent "tearing" and "pulling" on the cylinder (modular technology with increased tear-off protection).

Freewheel Freewheel

Freewheel (on request)

The profile cylinders which have a freely rotating cam are designated as freewheel cylinders.
The cam can be moved freely through 360° when no key is inserted. DOM freewheel cylinders comply with DIN EN 18252:2006-12.
When the key is inserted, the spring-loaded clutch engages in the cam. This then allows the cylinder to be closed in the conventional way with the key.

  • from cylinder length: 35,5/35,5 mm
  • Usually only necessary for special panic or automatic locks. If in doubt, please check with the door manufacturer.
  • for multi-point locks with panic function: latch and bolt must be moved into the lock body when the door is closed with the handle. To ensure this, the cam must be able to turn freely.
  • in motor-driven locks and special escape door locks
  • restrictions possible in combination with other optional equipment
  • this option cannot be combined with the emergency and danger function
  • freewheel function is tested according to FZG (test guideline for profile cylinders with freewheel function for gear locks in escape door locks)
