Rebated door

Rebated door

The most used door is the rebated door. In it, the rebate is a small step at the edge of the door leaf. As a result, the door leaf rests on the frame.
A seal on the frame (door frame) provides the necessary sealing and soundproofing.

The advantage of rebated doors is that they cover the gap between the door frame and the door leaf and thus hardly let any light through when the door is closed.

Doors for very high sound insulation requirements have door leaves with double or even triple rebate.

rebated doorrebated door
rebated door

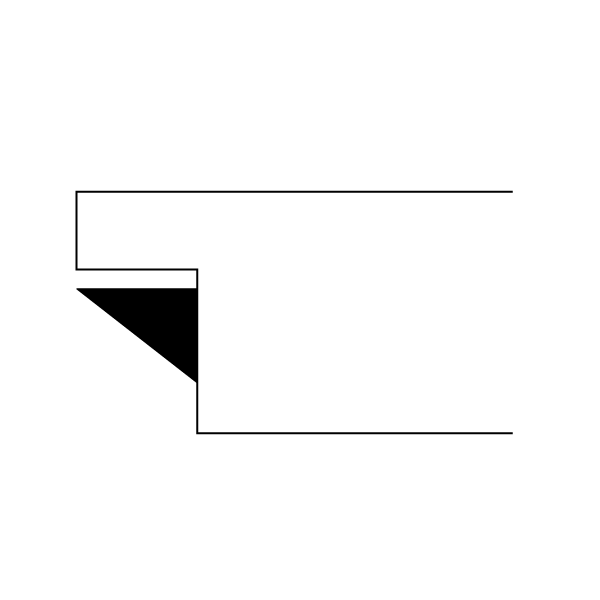

for rebated doorfor rebated door
for rebated door
rebated door with double foldrebated door with double fold
rebated door with double fold

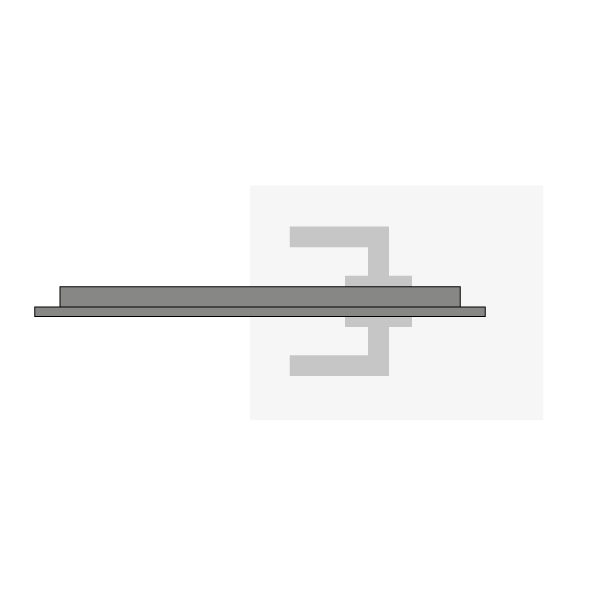

rebated door leafrebated door leaf
rebated door leaf

Non-rebated door

Doors without a rebate are called non-rebated doors.
Architects often require a harmonious and flush finish between the door leaf and frame. This is achieved by non-rebated door leaves. In practice, however, light gaps often occur in the closed state due to installation tolerances. Likewise, the sound insulation is somewhat lower compared to rebated doors.
Advantages are the modern elegance and aesthetic appearance. Due to the flushness of the frame and door leaf, it is an absolute eye-catcher in the room.

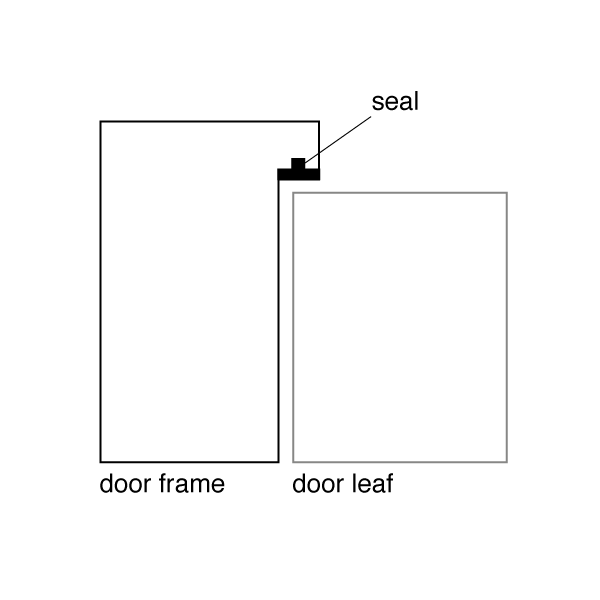

non-rebated doornon-rebated door
non-rebated door

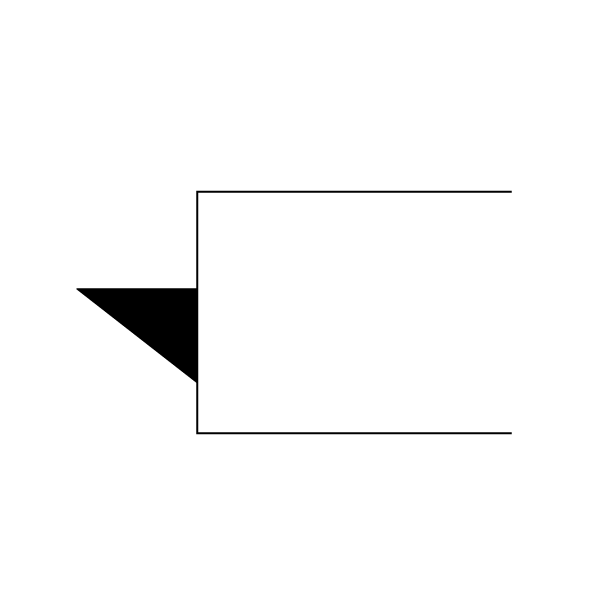

for non-rebated doorfor non-rebated door
for non-rebated door

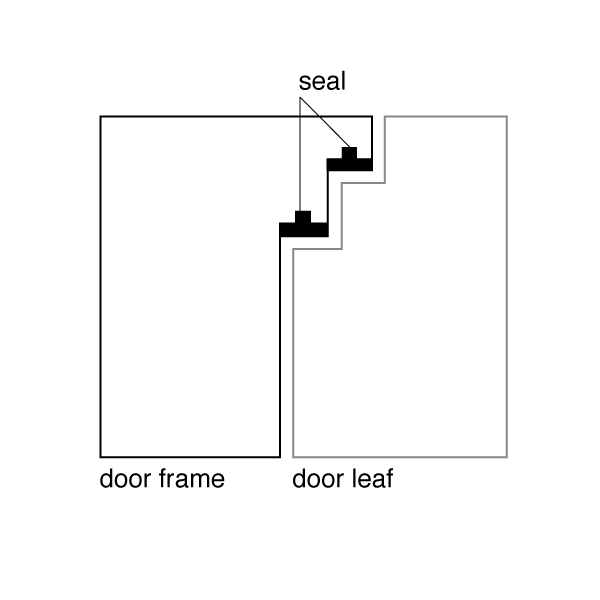

non-rebated door with double foldnon-rebated door with double fold
non-rebated door with double fold

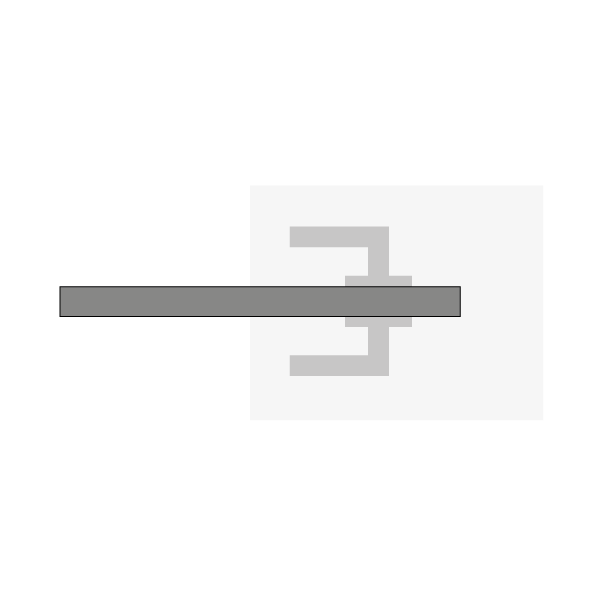

non-rebated door leafnon-rebated door leaf
non-rebated door leaf

Rebated door / non-rebated door

rebated door / non-rebated doorrebated door / non-rebated door
