My Account effeff electric door opener 19
SKU KB.22520
Producer No. EFFEFF.19
Delivery Time: 2 - 5 business days

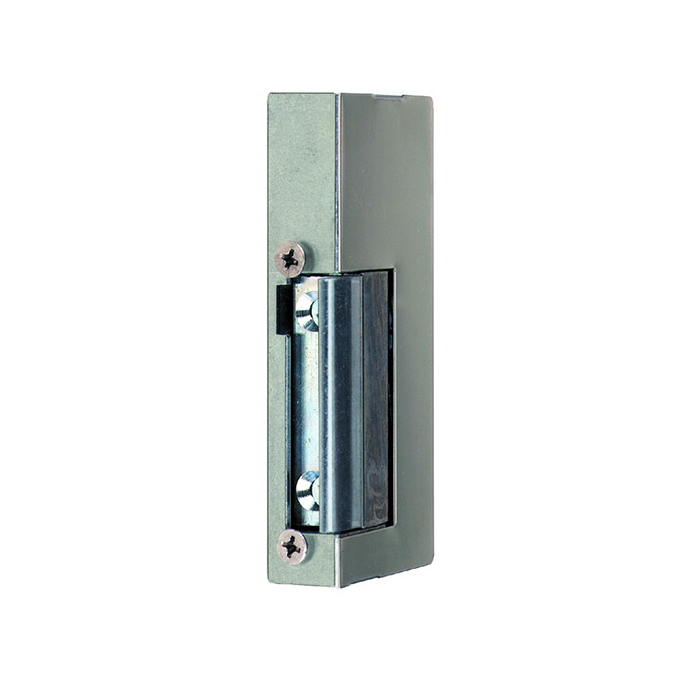

effeff electric door opener 19
Execution
- model with basic equipment
- in special flat design
- for thermally insulated tubular frame profiles
Technical characteristics
- adjustable latch (FF, FaFix®)
- without mechanical release
- material body: zinc die-cast
- material screw-on piece: brass
- in working current version
- 6 - 12 Volt AC/DC for momentary contact
- resistance to breakage: 3000 N
- operating temperature range: -15 °C to +40 °C
- dimensions (H x W x D): 90 x 16 x 28 mm
- door alignment DIN right or DIN left selectable
FaFix® Function
With FaFix® the door latch is split. The upper latch part can be moved and fixed. This means that part of the latch is fixed. The electric strike remains in its position on the strike plate. FaFix® electric strikes with the adjustable and fixable latch bolt allow precise adjustment to the position of the lock latch bolt. The door sealing pressure can thus be increased or reduced.
Scope of delivery
- effeff electric door opener 19
Manufacturer:
ASSA ABLOY Sicherheitstechnik GmbH
Bildstockstraße 20
72458 Albstadt
www.effeff.de
