Fire resistant interchangeable rosette fitting

manufacturer
SKU ST.FH1078
  €101.05
incl. 19% VAT , excl. Shipping Cost
Out of stock
Delivery Time: 4 - 8 business days

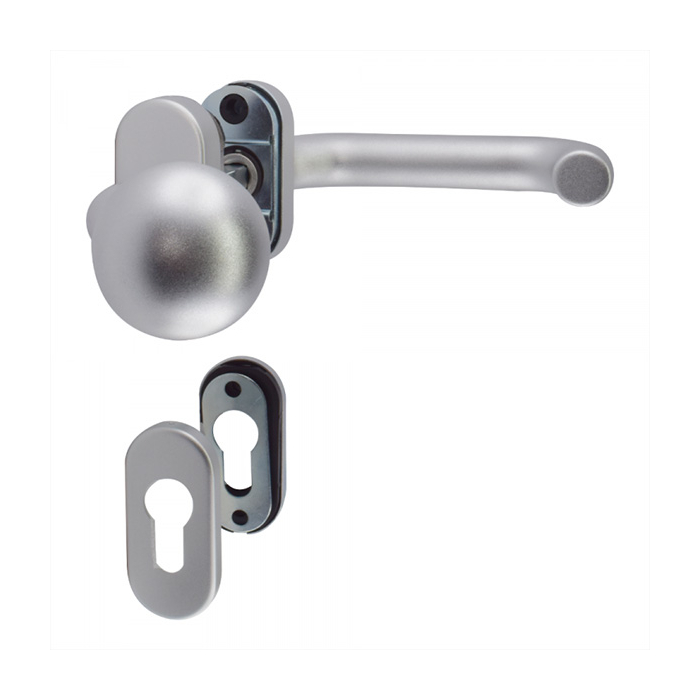

Fire resistant interchangeable rosette fitting

Dimensions

rosette dimension:

70 x 33 mm

handle length:

ALU: Ø 22 x 145 mm
stainless steel: Ø 21 x 145 mm

knob:

Ø 50 mm

door thickness:

40 - 66 mm

cylinder protrusion:

8 mm

square spindle:

9 mm

Technical details

  • fire protection rosette with PZ perforation
  • knob / handle oval rosette fitting
  • cranked ball knob fixed and handle turnable fixed
  • classification according to EN1906 / DIN18273 / EN179
  • surface / material: light metal F1 or stainless steel

Installation location

  • fitting for fire doors

Scope of delivery

  • knob / handle rosette fitting including fixing material

Manufacturer:
Schweisthal Beschlag- und Schließtechnik GmbH
Industriestr. 35
D-42551 Velbert
www.schweisthal.de
