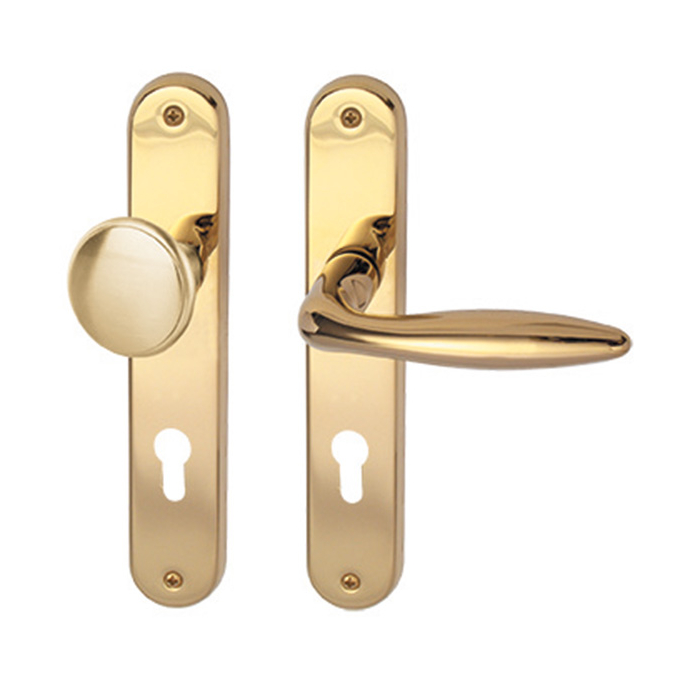

Südmetall Arena long plate fitting / knob-handle
The long plate handle fitting Arena from Südmetall offers a high-quality design. With its polished brass surface, this model brings simple elegance to any room. The rounded long plate is fixed with visible screws.
Dimensions
shield length:
225 mm
shield width:
40 mm
shield strength:
9 mm
handle length:
124 mm
door thickness:
38 - 42 mm
square spindle:
8 mm
distance:
72 mm
Technical details
- knob / handle interchangeable fitting with solid metal construction
- long plate fitting of the Arena-LS series, Vario Star Basic
- DIN left and DIN right selectable
- surface / material: polished brass
- lifting spring for horizontal handle position
- visible fastening screws
- classification according to EN 1906 utilization category 3, EN 1634-2, for heavy duty
- 12 years functional guarantee by manufacturer
Set variations
- BB fitting
- PZ fitting
- WC fitting
Installation location
- apartment entrance door
Features of the Vario Star Basic series
Vario Star® refers to a family of highly innovative mounting systems. These offer a wide range of possible combinations and therefore leave nothing to be desired. All systems of the Vario Star® family guarantee an exact, durable and flutter-free fit of the handle as well as a perfect hold. Installation can be carried out quickly and easily.
- long-lasting = precision nylon guide
- ability to change a wide range of door handles = variability
- very easy installation = comfort
- perfect hold due to 7 mm support studs = flutter-free fit
- quick screw connection = time saving
Door alignment
The DIN direction of the door alignment is also important for the selection. A distinction is made here between DIN right and DIN left. If the door hinges are on the left-hand side when the observer looks at the closed door, this is a door with a DIN left alignment, if the door hinges are on the right side, this is a DIN right door alignment.
Execution
BB = warded fittings
with handle / handle, suitable for interior doors with a warded mortise lock
PZ = profil cylinder fittings
with handle / handle, suitable for doors with a profil cylinder mortise lock
WC = bathroom fittings
suitable for doors with a WC mortise lock
WE-PZ = interchangeable door fittings with knob / handle
Scope of delivery
- knob / handle fitting including fixing material
Manufacturer:
Süd-Metall Beschläge GmbH
Sägewerkstraße 5
D – 83404 Ainring /Hammerau
www.suedmetall.com
