Südmetall Jill rosette fitting WC

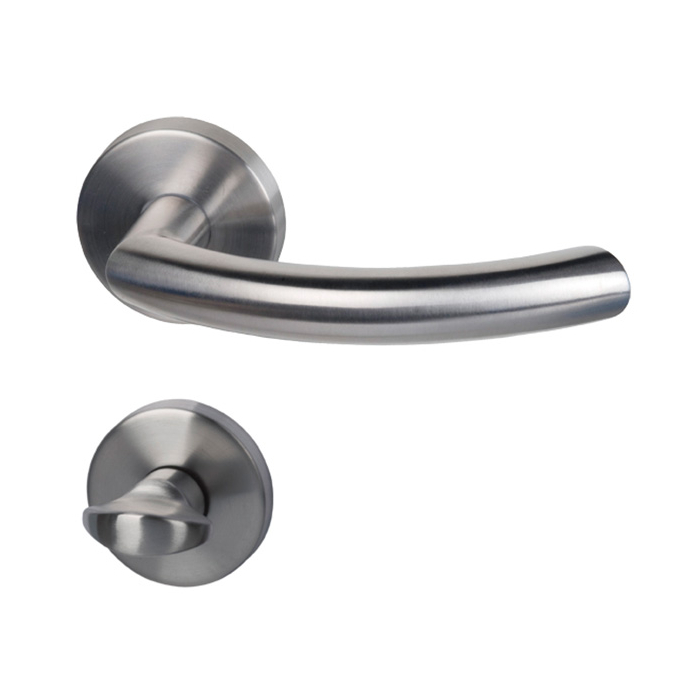

The round rosette fitting Jill with a stable metal construction can be mounted quickly and easily with the help of the Top Speed mounting system. The handle has a semi-circular shape and can be rotated in a fixed position.
WC rosettes can be recognised by the rotatable bolt on the inside. By means of this rotating bolt the door can be locked from the inside and cannot be opened from the outside by the blind rosette (partly with coloured indicator). These rosettes are used in washrooms and toilets.
Dimensions
rosette dimension:
Ø 55 mm
rosette thickness:
10 mm
handle length:
134 mm
door thickness:
47 - 56 mm
square spindle:
8 mm
Technical details
- WC rosette fittings with lock, stable metal substructure
- rosette fittings of the series Jill-R, Vario Star Top Speed
- for DIN left and DIN right door alignment
- surface / material: satin stainless steel
- lifting spring for horizontal handle position
- without grub screws
- quick assembly using Top Speed technology
- handle is fixed / rotatable
- classification according to EN 1906 utilization category 3 for heavy duty
- 12 years functional guarantee by manufacturer
Set variations
- PZ fitting
- BB fitting
- knob / handle interchangeable fitting
Installation location
- bathroom doors
Features of the Vario Star Top Speed series
Vario Star® refers to a family of highly innovative mounting systems. These offer a wide range of possible combinations and therefore leave nothing to be desired. All systems of the Vario Star® family guarantee an exact, durable and flutter-free fit of the handle as well as a perfect hold. Installation can be carried out quickly and easily.
- innovative concept for improved user-friendliness
- quick assembly »Top Speed« through bayonet lock
- metal substructure = top reliability
- with lifting spring = perfect position
- fixed / swivel-mounted = no vibrations
- no hexagon screw for GK3 = perfect appearance
- rosettes Ø 55 mm - covers all 50 mm + 52 mm rosettes, therefore suitable as renovation fitting
Door alignment
The DIN direction of the door alignment is also important for the selection. A distinction is made here between DIN right and DIN left. If the door hinges are on the left-hand side when the observer looks at the closed door, this is a door with a DIN left alignment, if the door hinges are on the right side, this is a DIN right door alignment.
Execution
BB = warded fittings
with handle / handle, suitable for interior doors with a warded mortise lock
PZ = profil cylinder fittings
with handle / handle, suitable for doors with a profil cylinder mortise lock
WC = bathroom fittings
suitable for doors with a WC mortise lock
WE-PZ = interchangeable door fittings with knob / handle
Scope of delivery
- WC rosette fitting including fixing material
Manufacturer:
Süd-Metall Beschläge GmbH
Sägewerkstraße 5
D – 83404 Ainring /Hammerau
www.suedmetall.com
