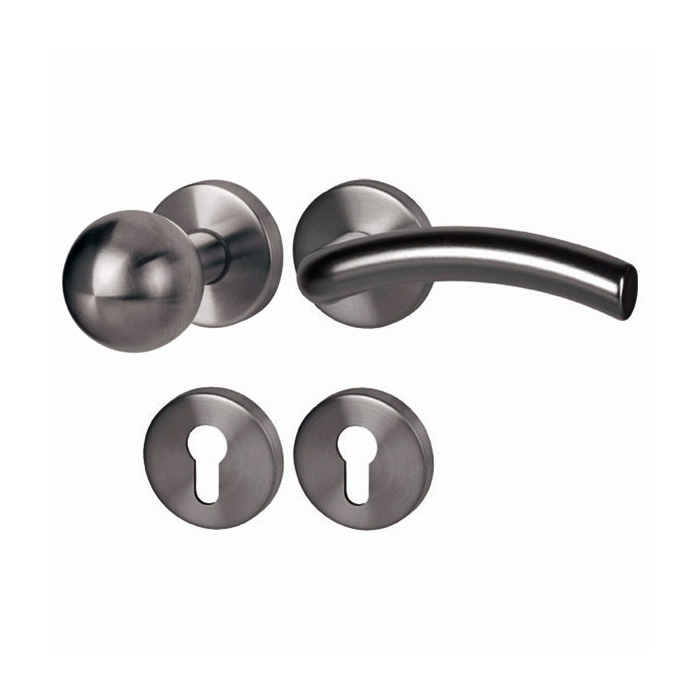

Südmetall Lisa rosette fitting / knob-handle
The Lisa rosette fitting is easy to install thanks to the Top Speed system. The patented fitting system impresses with its elegant appearance thanks to high-quality stainless steel and the modern curved handle. The robust metal substructure offers special stability.
Dimensions
rosette dimension:
Ø 55 mm
rosette thickness:
10 mm
handle length:
134 mm
door thickness:
38 - 42 mm
square spindle:
8 mm
Technical details
- knob / handle interchangeable fitting with stable metal substructure
- rosette fittings of the Lisa-R series, Vario Star Top Speed
- DIN left and DIN right selectable
- surface / material: satin stainless steel
- lifting spring for horizontal handle position
- without grub screws
- quick assembly using Top Speed technology
- handle is fixed / rotatable - no vibrations
- classification according to EN 1906 utilization category 3 for heavy duty
- 12 years functional guarantee by manufacturer
Set variations
- PZ fitting
- BB fitting
- WC fitting
Installation location
- apartment entrance door
Features of the Vario Star Top Speed series
Vario Star® refers to a family of highly innovative mounting systems. These offer a wide range of possible combinations and therefore leave nothing to be desired. All systems of the Vario Star® family guarantee an exact, durable and flutter-free fit of the handle as well as a perfect hold. Installation can be carried out quickly and easily.
- innovative concept for improved user-friendliness
- quick assembly »Top Speed« through bayonet lock
- metal substructure = top reliability
- with lifting spring = perfect position
- fixed / swivel-mounted = no vibrations
- no hexagon screw for GK3 = perfect appearance
- rosettes Ø 55 mm - covers all 50 mm + 52 mm rosettes, therefore suitable as renovation fitting
Door alignment
The DIN direction of the door alignment is also important for the selection. A distinction is made here between DIN right and DIN left. If the door hinges are on the left-hand side when the observer looks at the closed door, this is a door with a DIN left alignment, if the door hinges are on the right side, this is a DIN right door alignment.
Execution
BB = warded fittings
with handle / handle, suitable for interior doors with a warded mortise lock
PZ = profil cylinder fittings
with handle / handle, suitable for doors with a profil cylinder mortise lock
WC = bathroom fittings
suitable for doors with a WC mortise lock
WE-PZ = interchangeable door fittings with knob / handle
Scope of delivery
- knob / handle fitting including fixing material
Manufacturer:
Süd-Metall Beschläge GmbH
Sägewerkstraße 5
D – 83404 Ainring /Hammerau
www.suedmetall.com
