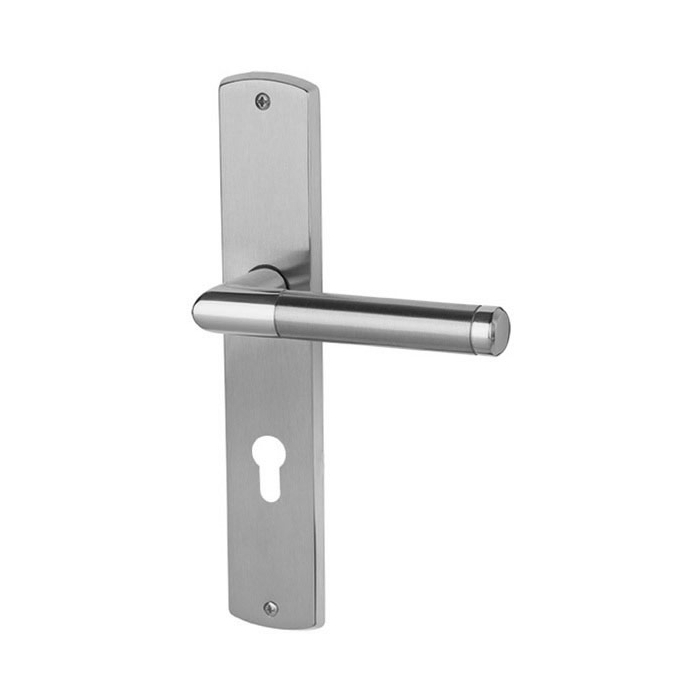

Royal renovation fitting PZ

manufacturer
SKU SM.32.98.6310
  €84.90
incl. 19% VAT , excl. Shipping Cost
getChildHtml("product.info.addtocart") ?>
Delivery Time: 4 - 8 business days

Südmetall ROYAL-LS renovation fitting PZ

The elegant design of the long plate fitting Royal with its stable metal construction has been designed for heavy-duty use (tested according to EN 1906 utilisation category 3). The fitting is fixed with visible screws. Due to the larger long plate it serves as a renovation fitting and covers the traces of the old plate.

PZ fittings are suitable in combination with profile cylinders. They are mainly used for front doors, apartment entrance doors or for office doors.

Dimensions

shield length:

249 mm

shield width:

48 mm

shield strength:

8 mm

handle length:

134 mm

door thickness:

38 - 42 mm

square spindle:

8 mm

distance:

72 mm

Technical details

  • profile cylinder fitting (handle / handle) with stable metal construction
  • renovation fitting of the Royal-LS series, Vario Star Basic
  • for DIN left and DIN right door alignment
  • surface / material: stainless steel color polished (satin)
  • optional finish: brass polished (satin)
  • visible fastening screws
  • with lifting spring: door handle is kept permanently in horizontal position
  • classification according to EN 1906 utilisation category 3, EN 1634-2
  • 12 years functional guarantee by manufacturer

Set variations

  • BB fitting
  • WC fitting
  • knob / handle interchangeable fitting

Installation location

  • room doors, apartment interior doors
  • for heavy duty use

Features of the Vario Star Basic series

Vario Star® refers to a family of highly innovative mounting systems. These offer a wide range of possible combinations and therefore leave nothing to be desired. All systems of the Vario Star® family guarantee an exact, durable and flutter-free fit of the handle as well as a perfect hold. Installation can be carried out quickly and easily.

  • long-lasting = precision nylon guide
  • ability to change a wide range of door handles = variability
  • very easy installation = comfort
  • perfect hold due to 7 mm support studs = flutter-free fit
  • quick screw connection = time saving

door alignmentdoor alignment

Door alignment

The DIN direction of the door alignment is also important for the selection. A distinction is made here between DIN right and DIN left. If the door hinges are on the left-hand side when the observer looks at the closed door, this is a door with a DIN left alignment, if the door hinges are on the right side, this is a DIN right door alignment.

fitting executionfitting execution

Execution

BB = warded fittings
with handle / handle, suitable for interior doors with a warded mortise lock

PZ = profil cylinder fittings
with handle / handle, suitable for doors with a profil cylinder mortise lock

WC = bathroom fittings
suitable for doors with a WC mortise lock

WE-PZ = interchangeable door fittings with knob / handle

Scope of delivery

  • handle door fitting including fixing material

Manufacturer:
Süd-Metall Beschläge GmbH
Sägewerkstraße 5
D – 83404 Ainring /Hammerau
www.suedmetall.com
