My Account Front door panic lock - forend width 24 mm

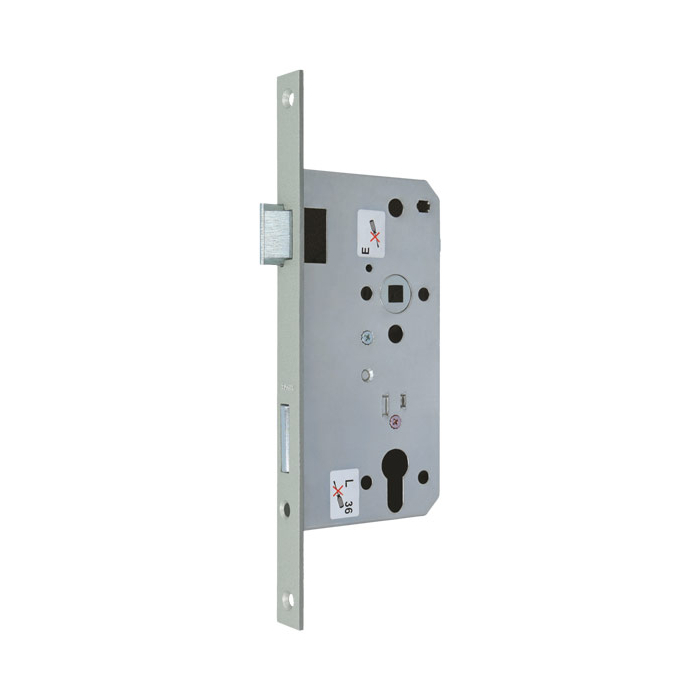

Front door panic lock - forend width 24 mm
Dimensions
square spindle:
9 mm
forend width:
24 mm
forend length:
280 mm
distance:
92 mm
backset:
65 mm
Product features
- panic function "E" (alternating function)
- with latch lever for alternating function
- lock case galvanized
- silver-coloured finish forend
- dead bolt and latch bolt galvanised
- forend design square
- door alignment DIN right or DIN left selectable
- no standard for emergency exit locks according to DIN EN 179:2008
- no standard for panic door locks according to DIN EN 1125:2008
Application area
- suitable for non-rebated doors with 92 mm distance e.g. doors to boiler rooms, underground car parks, storage rooms, apartment buildings
- prepared for Euro profile cylinder
Functional description - Panic function "E" (alternating function)
By operating the lever handle from the inside, the latch bolt and the locked dead bolt are retracted. The door can be opened. The door has a fixed knob from the outside. Latch bolt and dead bolt can be operated only with the key. After closing the door, opening from the outside is prevented by the latch bolt. To open the door, the latch bolt is retracted by operating the key. The door can be additionally locked and unlocked by key operation.
Determine dimensions correctly
Backset (in mm)
Is the distance from the centre of the lever handle or lock cylinder to the front edge of the forend.
Distance dimension
Is measured from the centre of the lever hub or turning knob to the centre of the cylinder recess (keyhole). This measure is standardized in Germany with the following dimensions:
- 72 mm for interior apartment doors
- 78 mm WC - doors
- 92 mm front doors / apartment doors outside
Square spindel
- square spindel 8 mm
interior apartment doors, room doors - square spindel 9 mm
fire door and doors with panic locks - square spindel 10 mm
special doors, exterior doors
Forend width and length
The forend is the front face of the mortise lock which is visible after installation in the door. The design of forend can be rounded or square.
Door alignment
The DIN direction of the door alignment is also important for the selection of the mortise lock. A distinction is made here between DIN right and DIN left. If the door hinges are on the left-hand side when the observer looks at the closed door, this is a door with a DIN left alignment, if the door hinges are on the right side, this is a DIN right door alignment.
Door type
Rebated door
The most used door is the rebated door. In it, the rebate is a small step at the edge of the door leaf. As a result, the door leaf rests on the frame. A seal on the frame (door frame) provides the necessary sealing and soundproofing.
Non-rebated doors
Doors without a rebate are called non-rebated doors. Architects often require a harmonious and flush finish between the door leaf and frame. This is achieved by non-rebated door leaves. Due to the flushness of the frame and door leaf, it is an absolute eye-catcher in the room.
Scope of delivery
- KBV front door panic lock - forend width 24 mm
Manufacturer:
KBV Kehrmann Beschlagtechnik Velbert e. K.
Zeiss-Straße 19
D-42551 Velbert
www.kbv-beschlaege.de
