My Account ABUS closing lever for camlock cylinder
SKU AB.L22
Producer No. L22
Delivery Time: 3 - 5 business days
Please note that the delivery time may be extended for options marked with *!
ABUS closing lever for camlock cylinder
Closing lever variants

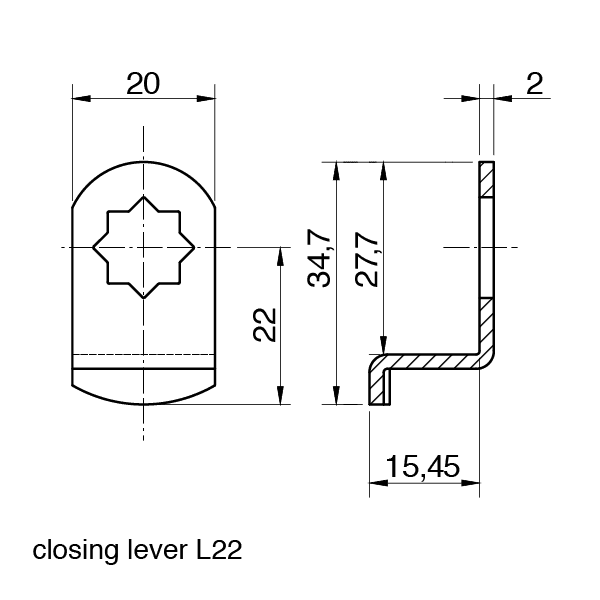

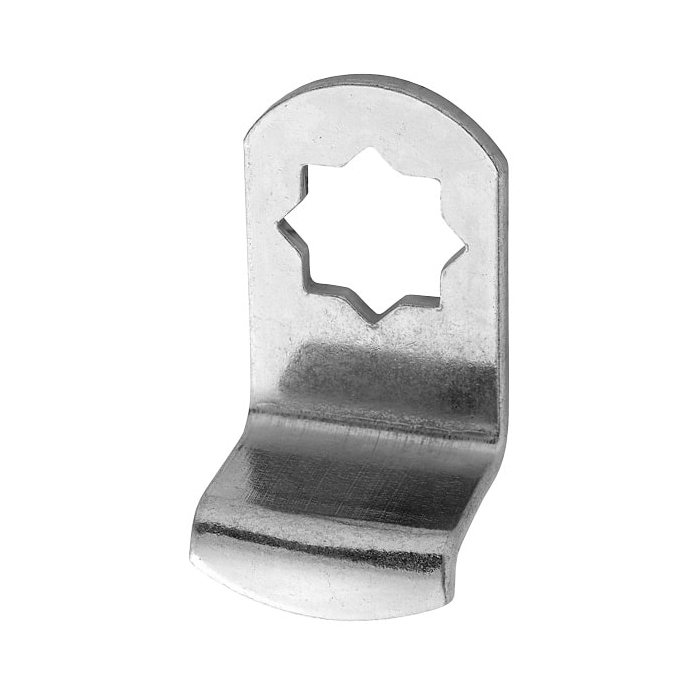

- ABUS closing lever L22 (standard), clamping dimension: 11,45 mm

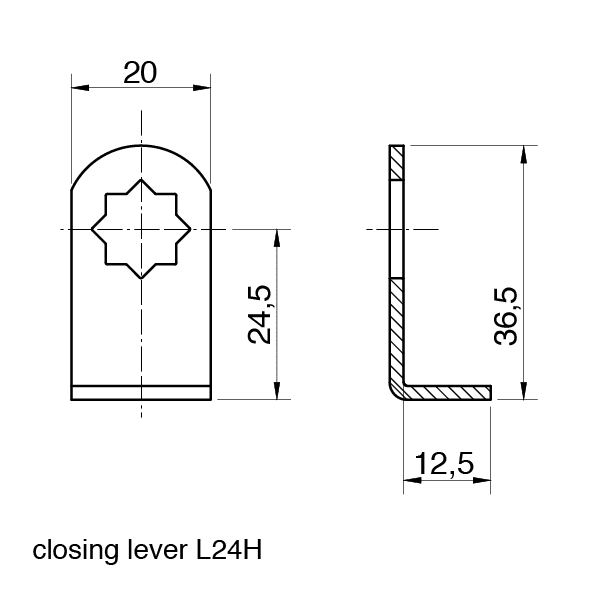

- ABUS closing lever L24H, clamping dimension: 14,4 mm

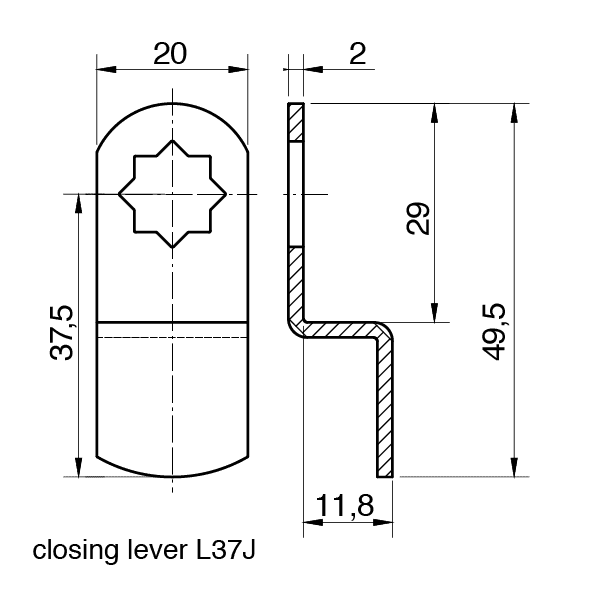

- ABUS closing lever L37J, clamping dimension: 15,1 mm
- Please note that the camlock hole still needs to be filed or milled out.
Locking paths
- locking path 90°, clockwise
- direction of rotation can be changed: locking path 90°, anticlockwise
Scope of delivery
- ABUS closing lever for camlock cylinder
Manufacturer:
Abus Pfaffenhain GmbH
Fabrikstraße 1
09387 Jahnsdorf
www.abus.com
