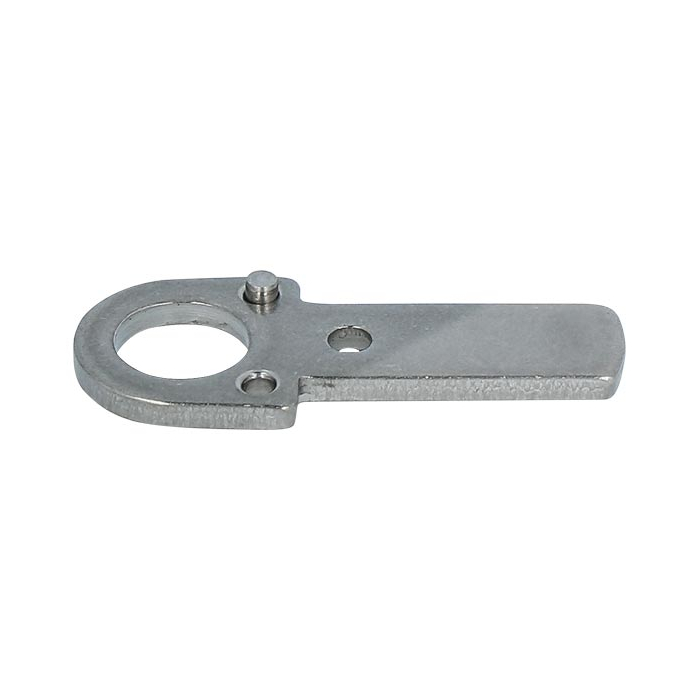

KESO 8000 Omega² closing lever for camlock cylinder

KESO 8000 Omega² closing lever for camlock cylinder

Locking paths

• locking path A: closed on the left, open on the top
• locking path B: closed on the right, open on the top
• locking path E: closed on the top, open on the left
• locking path F: closed on the top, open on the right

Please note that the camlock hole still needs to be filed or milled out.

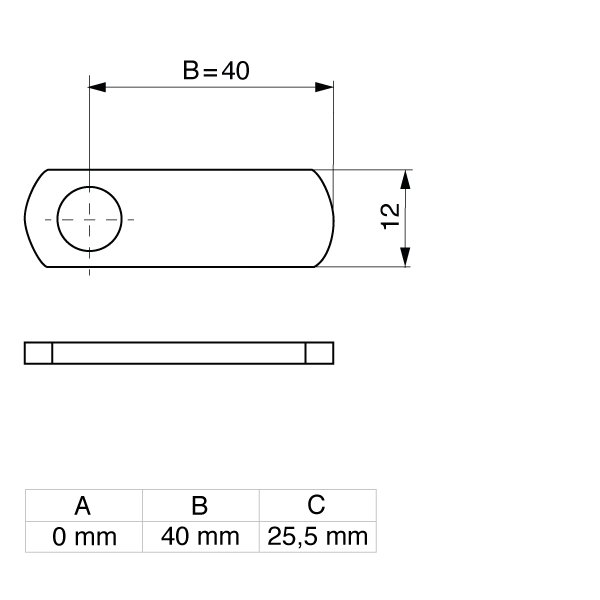

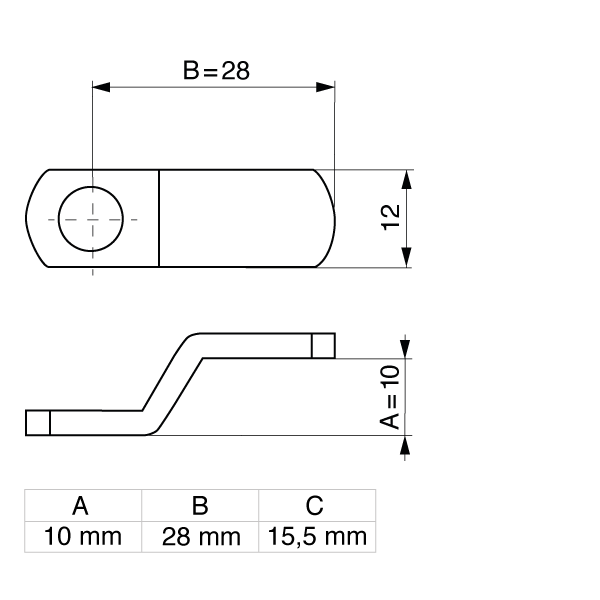

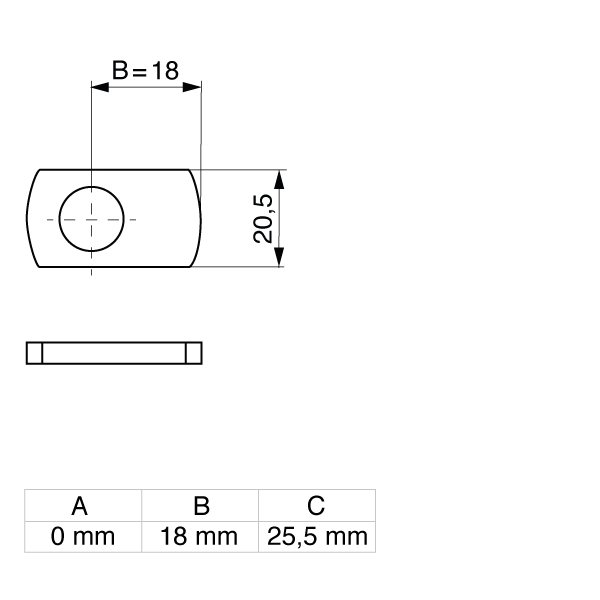

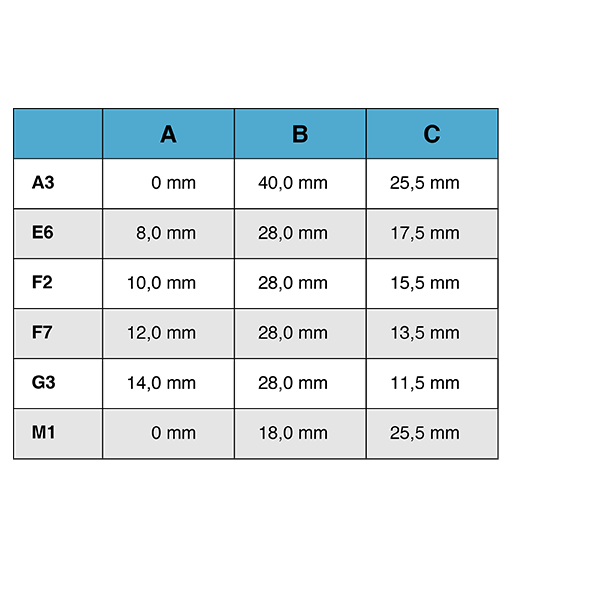

Closing lever variants

A = offset dimension
B = closing lever length (measured from the middle of the cylinder to the end of the lever)
C = clamping dimension (Please note: clamp dimension must be measured yourself to determine the correct lever.)

Scope of delivery

• KESO 8000 Omega² closing lever for camlock cylinder

Manufacturer:
sullus GmbH & Co. KG under licence from KESO ASSA ABLOY Sicherheitstechnik GmbH
