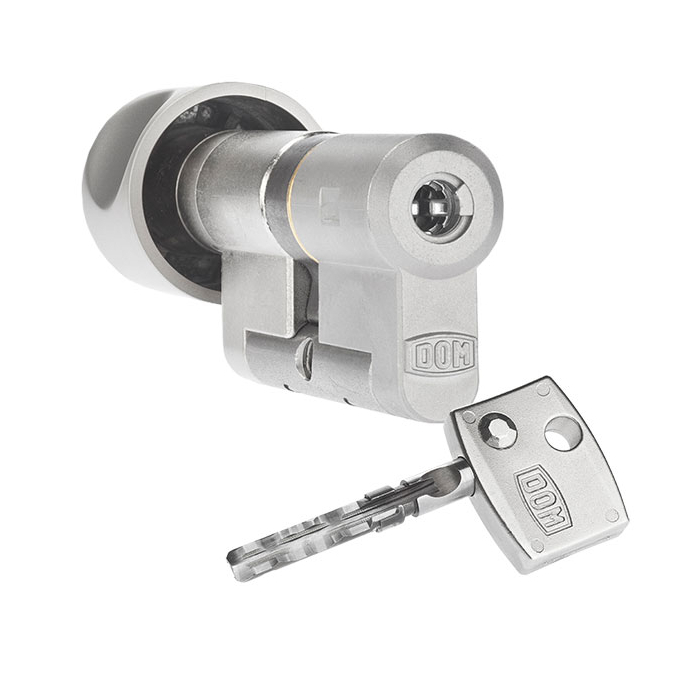

DOM diamant knob cylinder

DOM diamant knob cylinder

Everlasting quality

The DOM diamant system is convincing with extreme performance values. Here you can experience the high quality of another generation - made by DOM. The diamant system allows far higher requirements for protection and locking comfort. This is made possible by the steel locking mechanism with 21 rotating steel discs. Every single component, from the material to the locking mechanisms, stands for uncompromising quality down to the last detail.

Basic length

• from 32/32 mm
• measured from the middle of cam
• extension 5 mm per side
• Ordering information: the knob is always located on the inside of the cylinder.

Execution

• solid cylinder body made of high-quality stainless steel in MIM technology
• cylinder core: duracast
• corrosion-free and low-wear

Operational area

• external doors, entrance doors with increased security requirements, apartment doors
• single-family homes with the highest protection requirements
• airports, educational institutions, financial buildings, residential buildings, hospitals, industry, hotel buildings
• high security building
• small to large businesses

Care instructions

The DOM diamant cylinders have a disc locking mechanism which must not be lubricated with a solid lubricant (e.g. graphite). They are sufficiently provided ex works with a resin-free liquid lubricant so that their perfect function is guaranteed for a long time. However, to prevent the cylinder from "running dry" during heavy use, it should be "relubricated" from time to time with the DOM Service Spray.

Technical characteristics

• highest drilling and core pulling protection
• increased drilling protection through carbide elements or steel-hardened elements
• modular construction with chrome-nickel-steel connecting bar
• 21 rotating, ball bearing mounted steel discs on each closing side
• 35-fold locking authorisation queries per key
• 2 upstream inspection discs
• 3 axially arranged locking rollers
• coreless locking mechanism
• 10 rotating locking elements (freely rotating, stainless steel locking segments)
• 6 massive pin locking elements
• lateral revision pins
• 10 years DOM additional warranty if registered under DOM

MIM Technology

DOM diamant achieves extreme performance values with the innovative disc technology and the cylinder fully encased in high-quality MIM steel. The stainless steel used here is coated with the special MIM process (metal injection moulding), a powder injection moulding process.

Impact protection

The cylinder contains impact protection pins and other security elements that prevent access by impact keys to turn the inner pins.

Opening protection

The cylinder contains specially shaped unlocking security pins that prevent opening with the help of a lock pick.

Pulling protection

The cylinder contains a special cylinder core which prevents the cylinder from being pulled out by drilling into the core.

Key

• key thickness: 6 mm
• highest key copy protection by multilinear, three-dimensional key profile, CNC manufactured
• stainless steel key with duracast bow
• ergonomically shaped key head, energy-saving door opening

Options / Special equipment

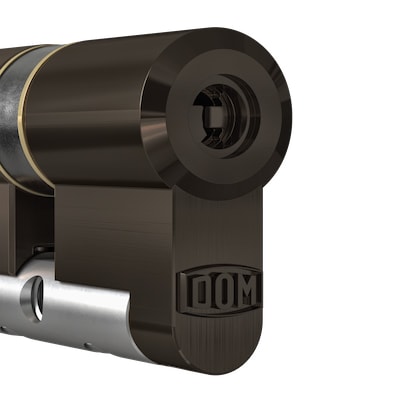

• different cylinder finishes (polished brass, oxidized bronze)
• different knob designs, standard design K6 (optional: K1, K3, K4)

Description of the additional options

Scope of delivery

• knob cylinder incl. 3 or more keys
• 1 fixing screw M5 x 75 mm
• security card

DOM offers you a free additional guarantee on this system in addition to the DOM guarantee with a total running time of 10 years.
For this you must register with DOM within 1 month of purchasing the registered single lock.
You can find further information on this at DOM under the following link.

Manufacturer:
DOM Sicherheitstechnik GmbH & Co. KG
Wesselinger Straße 10-16
D-50321 Brühl/Köln
www.dom-security.com

How to measure the cylinder length correctly?
You can also find help in determining the correct length in our Help Center for "Cylinder Gauge".
