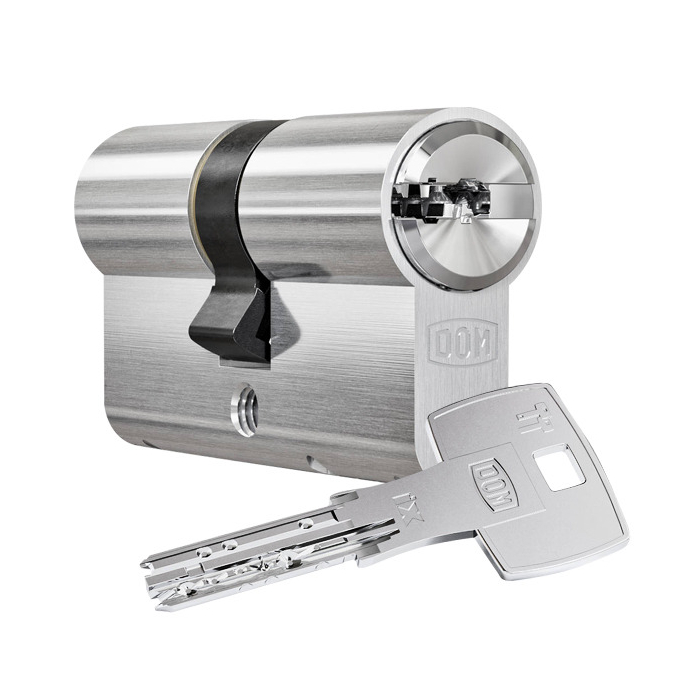

DOM ix Teco® (7TE) double cylinder short

DOM ix Teco® (7TE) double cylinder short

System ix Teco® (7TE) "Easy access to superior security"

The new ix Teco® reversible key (commercial profile ix 7TE) is particularly well protected against unauthorized copying by an innovative additional stamped recess in the key, based on a patented technology. A special high-low (HT) milling technology in the horizontal base profile increases security during profile control and is difficult to copy. With the innovative and sophisticated design, you acquire a locking system with efficient key copy protection, which is predestined for use in the locking system, but also for individual locks.

Patent protection until 2038

Basic length

• from 28/35,5 mm
• max. up to 28/45,5 mm
• measured from the middle of cam
• extension in 5 mm steps

Execution

• cylinder body and cylinder core made of solid brass (high corrosion protection)
• finish: dull nickel
• reversible key system
• horizontal key insertion
• compatible with DOM electronics (made possible by integrating passive transponder technology into the key bow via a clip tag)

Operational area

• interior doors, exterior doors, front doors, apartment doors with increased security requirements
• apartment buildings
• larger residential areas
• small and medium-sized commercial properties

Technical characteristics

• high protection against manipulation by 20-fold locking authorisation query
• anti bumping (impact key protection) & anti picking pins (picking protection)
• up to 12 horizontal and vertical profile control pins: control points for the authorization query of a key
• 7 spring-loaded pin locking elements on each locking side, axially arranged, made of special brass/hardened steel offer manipulation protection (6 variable tumblers, 1 function pin interrogation for the stamped recess)
• 12 core and body pins
• narrowed core and body pins for safety during scanning and unlocking
• drilling protection (standard): 2 hardened steel pins in the body, 1 hardened steel pin in the cylinder core
• 13 mm core diameter
• one-piece cam made of sintered steel
• concave core head as key insertion aid
• according to DIN EN 1303:2015-08, certified according to ISO 9001:2015
• locking security class 6, attack resistance class B (locking system class C) according to DIN EN 1303

Reversible keys with special high-low milling (HT)

The DOM System ix Teco® (7TE) has a patented high-low milling in the key and thus offers a high technical key copy protection and high manipulation protection against opening techniques.

Impact protection

The cylinder contains impact protection pins and other security elements that prevent access by impact keys to turn the inner pins.

Opening protection

The cylinder contains specially shaped unlocking security pins that prevent opening with the help of a lock pick.

Pulling protection

The cylinder contains a special cylinder core which prevents the cylinder from being pulled out by drilling into the core.

Key

• key thickness: 2,6 mm
• nickel silver reversible key: corrosion-free and low-wear
• high operating comfort due to reversible key
• new key head design
• special high-low milling (lift-out and sloped areas) for optimal key insertion
• with additional stamped recess
• complex coding in the key makes it difficult to make a duplicate key (very high key copy protection)
• key blade length adapted to all common safety fittings
• no key blanks available on the market

Options / Special equipment

• different cylinder finishes (on request)
• emergency and danger function

Description of the additional options

Scope of delivery

• double cylinder short incl. 3 or more keys
• 1 fixing screw
• security card

Manufacturer:
DOM Sicherheitstechnik GmbH & Co. KG
Wesselinger Straße 10-16
D-50321 Brühl/Köln
www.dom-security.com

How to measure the cylinder length correctly?
You can also find help in determining the correct length in our Help Center for "Cylinder Gauge".
