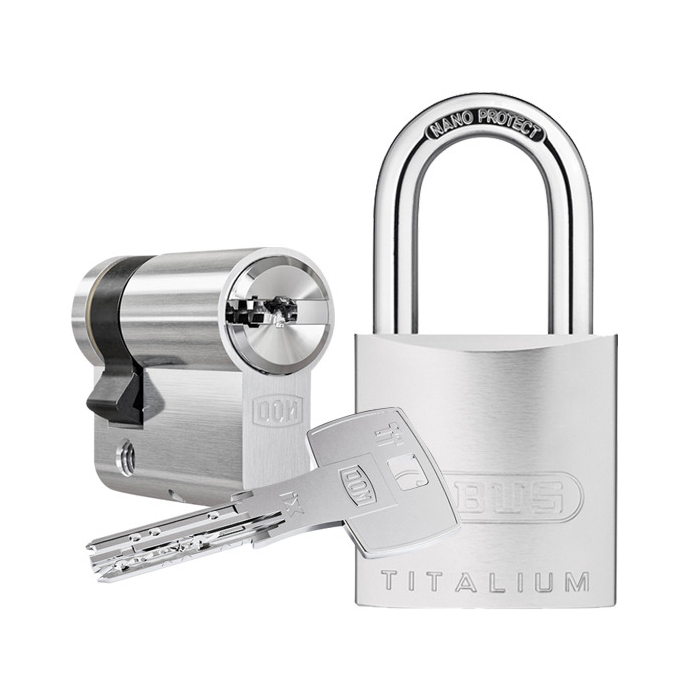

DOM ix Teco® (7TE) half cylinder + ABUS padlock 86TI/45

DOM ix Teco® (7TE) half cylinder + ABUS padlock 86TI/45

System ix Teco® (7TE) "Easy access to superior security"

The new ix Teco® reversible key (commercial profile ix 7TE) is particularly well protected against unauthorized copying by an innovative additional stamped recess in the key, based on a patented technology. A special high-low (HT) milling technology in the horizontal base profile increases security during profile control and is difficult to copy. With the innovative and sophisticated design, you acquire a locking system with efficient key copy protection, which is predestined for use in the locking system, but also for individual locks.

Patent protection until 2038

Measurements

• standard shackle height 86TI/45: 32,5 mm
• shackle: Ø 8 mm
• case width: 46,5 mm
• length half cylinder: 30,5/10 mm

Execution

• reversible key system
• horizontal key insertion
• solid lock body made of TITALIUM™, special aluminium - high security at low weight
• cylinder body and cylinder core made of solid brass (high corrosion protection)
• finish: dull nickel
• with hardened steel shackle with special NANO protect coating for very high corrosion protection
• key can only be removed when closed, positively locked by locking path
• shackle locked on both sides
• 86TI/45: forced locking with 45° position of cam
• compatible with DOM electronics (made possible by integrating passive transponder technology into the key bow via a clip tag)

Operational area

• indoor, conditionally for outdoor usage
• cellar and lattice boxes, sheds, chain fasteners etc.
• simple doors that are locked with a latch, roller shutters, cupboard systems, barrier fences

Technical characteristics

• high protection against manipulation due to 20-fold locking authorisation query
• anti bumping (impact key protection) & anti picking pins (picking protection)
• up to 12 horizontal and vertical profile control pins: control points for the authorization query of a key
• 7 spring-loaded pin locking elements, axially arranged, made of special brass/hardened steel offer manipulation protection (6 variable tumblers, 1 function pin interrogation for the stamped recess)
• 12 core and body pins
• narrowed core and body pins for safety during scanning and unlocking
• drilling protection (standard): 2 hardened steel pins in the body, 1 hardened steel pin in the cylinder core
• 13 mm core diameter
• one-piece cam made of sintered steel
• concave core head as key insertion aid
• according to DIN EN 1303:2015-08, certified according to ISO 9001:2015
• locking security class 6, attack resistance class B (locking system class C) according to DIN EN 1303

Reversible keys with special high-low milling (HT)

The DOM System ix Teco® (7TE) has a patented high-low milling in the key and thus offers a high technical key copy protection and high manipulation protection against opening techniques.

The material TITALIUM™

The TITALIUM™ padlocks from security expert ABUS represent a new dimension in security! Manufactured from an innovative material, they stand for high security with a greatly reduced weight. The material TITALIUM™ is based on a light aluminium special alloy, which shines with its strong robustness and lightness at the same time. The special steel shackle is coated with NANO PROTECT™ for very high corrosion protection.

Key

• key thickness: 2,6 mm
• nickel silver reversible key: corrosion-free and low-wear
• high operating comfort due to reversible key
• new key head design
• special high-low milling (lift-out and sloped areas) for optimal key insertion
• with additional stamped recess
• complex coding in the key makes it difficult to make a duplicate key (very high key copy protection)
• key blade length adapted to all common safety fittings
• no key blanks available on the market

Options / Special equipment

• different shackle height (39,5 mm = 86TI/55)

Description of the additional options

Scope of delivery

• ABUS Vorhangschloss 86TI/45 with DOM ix Teco® (7TE) half cylinder incl. 3 or more keys
• security card

Manufacturer:
DOM Sicherheitstechnik GmbH & Co. KG
Wesselinger Straße 10-16
D-50321 Brühl/Köln
www.dom-security.com
