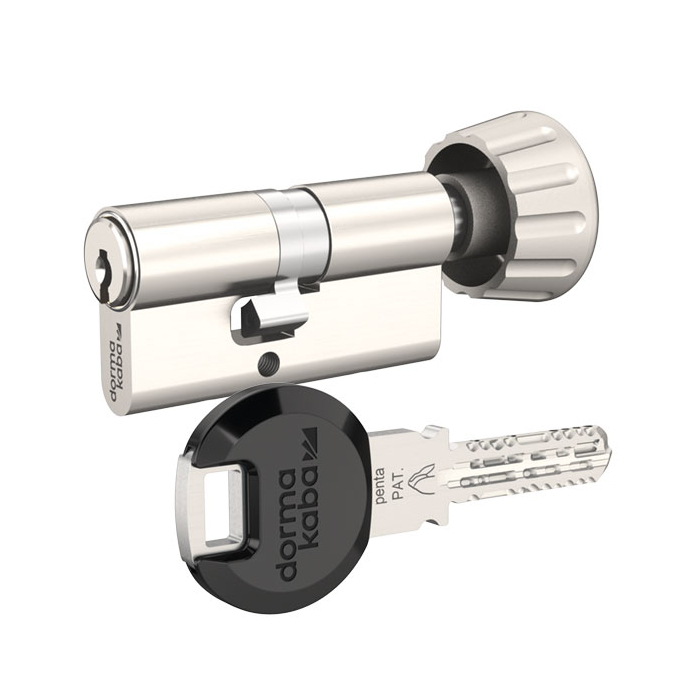

DORMAKABA penta knob cylinder short
The DORMAKABA penta system is a very flexible system and meets the highest security requirements both in the private sector and for large and complex installations. DORMAKABA penta offers a high level of security thanks to the sophisticated technology within the locking cylinder. This is achieved by 5 radial pin rows with up to 22 pin positions. High-quality materials such as low-wear chrome nickel steel for the pins and nickel silver for the key are also decisive. DORMAKABA penta locking cylinders are among the most secure on the market and protect against the most common opening methods.
DORMAKABA penta locking cylinders are part of an ergonomically correct reversible key system, which means that the DORMAKABA reversible key is inserted vertically into the cylinder channel.
Patent protection until 2033 and unlimited trademark protection
Basic length
- from 25/35 mm
- max. up to 25/80 mm
- measured from the middle of cam
- extension in 5 mm steps
- Ordering information: the knob is always located on the inside of the cylinder.
Execution
- ergonomically correct reversible key, i.e. the DORMAKABA reversible key is inserted vertically into the cylinder channel
- easy key insertion due to new design of the locking elements
- cylinder body: nickel plated brass
- integration into electronic DORMAKABA locking systems with LEGIC clip possible at any time (retrofittable), mechanical lock remains unchanged
- can be combined with DORMAKABA evolo mechatronic locking system
Operational area
- interior doors, exterior doors, front doors, apartment doors
- private houses and apartments
- small and medium-sized enterprises
- industrial and administrative buildings
- public facilities such as schools or community buildings
- large and complex locking systems
Technical characteristics
- technical and patent copy protection offer high key copy protection
- 5 radially arranged rows of hardened steel pins
- up to 22 pin pairs per cylinder side in several rows on 85 possible positions
- number of possible, theoretical individual blocks: 867 trillion
- spring-loaded pairs of locking elements made of hardened steel, chemically nickel plated
- standard drilling protection (hardened steel locking elements and a 4 mm thick fixing screw made of hardened steel additionally on each cylinder side in the cylinder body)
- very high security against picking and the impact method
- classic door cylinder in 17 mm Euro profile, core diameter: 15 mm
- modular system design
- tested according to DIN EN 1303:2015 locking security class 6, and in conjunction with pull-out protection rosettes or fittings the attack resistance class 2, in optional lamella design the cylinders also fulfil attack resistance class D according to DIN EN 1303 without protective fittings
- certifications: DIN 18252-82 | Kitemark
- other cylinder shapes: e.g. swiss round profile, oval profile
Reversible key that is technically difficult to copy
The reversible key is technically difficult to copy. The keys are not coded by drilling, but by a special milling process that conceals the position of the coding on the key. The key is made of nickel silver and is highly resistant to breaking, has excellent sliding properties and lowest wear. New design of the locking elements allow the key to slide even more easily into the key channel.
High security against picking and the impact method
With the rapido method, conventional locking cylinders can be opened - without leaving any traces - with a specially made key and a hammer. The DORMAKABA penta system is protected against this.
DORMAKABA modular
The DORMAKABA modular system allows cylinders to be converted to other lengths or even other cylinder shapes on site with little effort. The locking system remains intact.
The inserted cylinder cores (inserts) can easily be used in other cylinder designs (half cylinders, knob cylinders, camlock cylinders, etc.).
Key
- key thickness: 2,5 mm
- reversible key made of high-quality nickel silver, low-wear
- reversible key that is technically difficult to copy
- the new coding on the tip of the key cannot be produced with conventional key cutting machines; if the coding is missing, a key cannot be inserted or turned
- high breaking resistance
- 3 different key types, standard key: smartkey (optional largekey, long bow)
- colour clip standard: black (selectable from 12 colours)
- new exclusive colour clips only for the DORMAKABA penta system: in elaborate 2-component plastic technology with glossy surface
Options / Special equipment
- long bow with and without key clip
Description of the additional options
Largekey (clip and long bow)
- long key bow with extended key neck
- colour clip standard: black (selectable from 12 colours)
- when using e.g. protective fittings with core pulling protection rosette
Long bow (armour bow)
- reversible key with armour bow
- when using e.g. security fittings with core pulling protection rosette and multiple locking systems
Options / Special equipment
- different cylinder finishes
- different knob designs
- increased drilling protection BS2
- weather protection
Description of the additional options
Cylinder finishes
- standard finish: nickel plated (silver-coloured)
- optional: brown medium, brass natural (gold-coloured), black
- for individual design requirements
- if desired, homogeneous appearance of door cylinder and fitting
- Please note:
If a different cylinder finish, different from the standard finish, is ordered, extended production times may occur.
Knob design
- standard knob: Ø 34 mm
- mega knob: 40 mm x 19 mm (only in nickel plated / brass polished / black)
- D-line knob: 37,6 mm x 17,9 mm (only in nickel plated)
Standard drilling protection
The standard drilling protection is achieved by standard hardened steel locking elements and a hardened insert fixing screw (A). This design complies with DIN EN 1303 attack resistance class B.
Increased drilling protection BS2
By using additional steel elements in the body and insert, a higher resistance to drilling is achieved. This option does not include an integrated pull-out protection. In combination with a tested core protection fitting, attack resistance class D is achieved.
A = insert with two carbide lenght pins = BS
B = tungsten carbide stud
C = short insert fixing screw hardened at the front
D = long insert fixing screw hardened at the rear
Dust and splash water protection
Cylinders with dust and splash water protection are equipped with a spring-loaded dust and weather protection cap with 2 spring-loaded sealing lips on the cylinder face. Every Euro profile cylinder can be equipped with this function. The outside length of the cylinder is extended by approx. 5 mm.
Dust and splash water protection is supplied in standard color nickel plated (silver colour).
Cannot be used for cylinders with pulling protection devices and for protective fittings.
Dust and insect protection (on request)
The new SIS element is optimised for use with Euro profile cylinders and offers effective protection against the penetration of dirt and insects into the key channel. The outside length of the cylinder is extended by approx. 3,5 mm.
The SIS unit can be easily retrofitted as it is decoupled from the body and is mounted directly on the rotor. As a result, only the cylinder insert needs to be replaced, the rest of the cylinder is not affected by the upgrade and can continue to be used 1:1.
If the cylinder front is to be level, the option dust and splash water protection must be selected.
Not available in conjunction with VdS versions.
The SIS cap is always chemically nickel-plated.
Scope of delivery
- knob cylinder short incl. 3 or more keys
- 1 fixing screw M5 x 85 mm
- security card
Manufacturer:
dormakaba Deutschland GmbH
DORMA Platz 1
D-58256 Ennepetal
www.dormakaba.de
How to measure the cylinder length correctly?
You can also find help in determining the correct length in our Help Center for "Cylinder Gauge".
