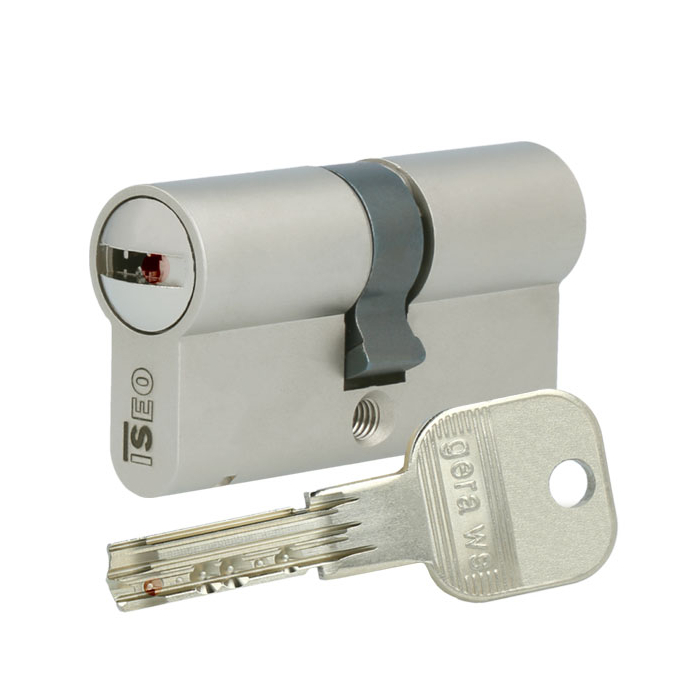

ISEO GERA WS double cylinder

ISEO GERA WS 4500 double cylinder

ISEO GERA WS is a reversible key profile. The large number of profile variants in combination with 6 locking authorisation queries via the pin system offers a high degree of security against unauthorised re-locking. The nickel silver reversible keys are corrosion-free, low-wear, easy to handle and offer good locking convenience.

Key blanks of the profile series GERA WS are not freely available in the trade.

Basic length

• from 30/30 mm
• measured from the middle of cam
• extension 5 mm per side

Execution

• reversible key system
• horizontal key insertion
• cylinder body: matt nickel plated

Operational area

• front doors, connecting doors, office doors, interior doors, exterior doors, apartment doors, gates, wooden doors, aluminium doors, tubular frame doors, etc.
• private houses and apartments
• office and commercial areas

Technical characteristics

• 6 pairs of locking elements
• core pins made of special brass
• standard drilling protection (ABS/A): two hardened dowel pins each in the core and in the body, on one side from the outside of the cylinder
• according to DIN 18252/DIN EN 1303 class P3 (cylinders are marked with quality mark and registration number)
• with trademark protection

Key

• key thickness: 3 mm
• reversible key made of nickel silver
• corrosion-free, low-wear
• easy to handle and good closing comfort
• no key blanks freely available on the market

Options / Special equipment

• increased drilling protection
• emergency and danger function with freewheel function

Description of the additional options

Standard drilling protection (ABS/A)

• two hardened dowel pins each in the core and in the body
• on one side from the outside of the cylinder

Increased drilling protection (ABS/E)

• two hardened cylindrical pins in the core and one carbide pin in the core above the profile as well as two carbide pins in the body
• 1. and 2. pair of pins with hardened steel core or hardened steel
• on one side from the outside of the cylinder

Scope of delivery

• double cylinder (type 4500) incl. 3 or more keys
• 1 fixing screw M5
• security card

Manufacturer:
Iseo Deutschland GmbH
Wiesestraße 190
07548 Gera
www.iseo.com

How to measure the cylinder length correctly?
You can also find help in determining the correct length in our Help Center for "Cylinder Gauge".
