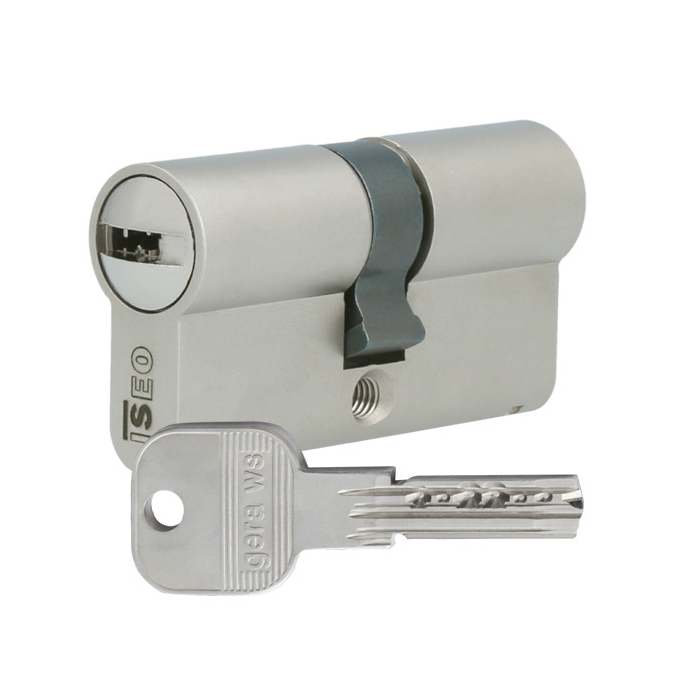

ISEO GERA WS-MC double cylinder
ISEO GERA WS-MC is a magnetically coded reversible key system with security card. This system fulfils high security requirements thanks to the standard drilling protection and the 6-fold locking authorisation query. A special feature here is the active springless pin, which is only activated by the magnet in the key. The permanent magnet provides additional security against unauthorised key copies. The reversible keys made of nickel silver are corrosion-free, low-wear, easy to handle and offer good locking comfort.
Key blanks of the profile series GERA WS-MC are not freely available in the trade.
Basic length
- from 30/30 mm
- short cylinder: 26/30 mm up to 26/45 mm
- measured from the middle of cam
- extension 5 mm per side
Execution
- reversible key system
- horizontal key insertion
- cylinder body: brass matt nickel-plated
- 2 magnets (1 magnet per key side)
- cam made of sintered steel
Operational area
- front doors, connecting doors, office doors, interior doors, exterior doors, apartment doors, gates, wooden doors, aluminium doors, tubular frame doors, etc.
- simply structured properties such as law firms, doctors' practices, offices
- residential buildings
Technical characteristics
- 5 pin locking elements made of wear-resistant special brass on each locking side
- 1 additional active springless pin activated by permanent magnet in the key
- 3 hardened cylinder pins in the core and 2 hardened cylinder pins in the body
- 2 intersecting ribs in the centre of the core (paracentric profile)
- 2 anti-picking pins in the cylinder core
- standard drilling protection: three hardened steel pins in the core, 2 hardened steel pins in the body, on both sides
- with trademark protection
Technical copy protection
At the 3rd milling groove, there is a steel core pin or a magnet-equipped core pin and a springless body pin in the cylinder. A permanent magnet is located in the key at the 3rd milling groove. This interrogates the steel core pin or magnet-equipped core pin in the cylinder and pulls it into the locking position. If the permanent magnet is missing or in the wrong position, the pin is not attracted and therefore remains locked in the body channel.
Key
- key thickness: 3,6 mm
- reversible key made of nickel silver
- horizontal key insertion
- with permanent magnet
- corrosion-free, low-wear
- easy to handle and good closing comfort
- no key blanks freely available on the market
- optionally: key with colour pin
Special equipment
- increased drilling protection
- emergency and danger function with freewheel function
- locking cams (on request)
- modular design (please select the cylinder)
- Other options are available in the modular design.
Cylinder version
Description of the additional options
Standard drilling protection
- three hardened steel pins in the cylinder core
- 2 hardened steel pins in the body
- on both sides of the cylinder
Increased drilling protection
- one carbide pin in the core above the profile
- two carbide pins in the body
- 1. and 2. pair of pins with hardened steel core
- on both sides of the cylinder
Emergency and danger function with freewheel function
This function enables the lock cylinder to be locked even if a key with locking authorisation is inserted on the opposite side. For this purpose, is the cylinder with a freely rotatable cam (locking cam) equipped. The cam can be moved freely through 360° when no key is inserted. When the key is inserted, the spring-loaded clutch in the cam engages. That allows the cylinder to be closed in the conventional way with the key.
Special locking cams for profile cylinders (on request)
- 2-fold cam (Biffar) with danger function
- 10 teeth cog Ø 24
Scope of delivery
- double cylinder incl. 3 or more keys
- 1 fixing screw M5
- security card
Manufacturer:
Iseo Deutschland GmbH
Wiesestraße 190
07548 Gera
www.iseo.com
