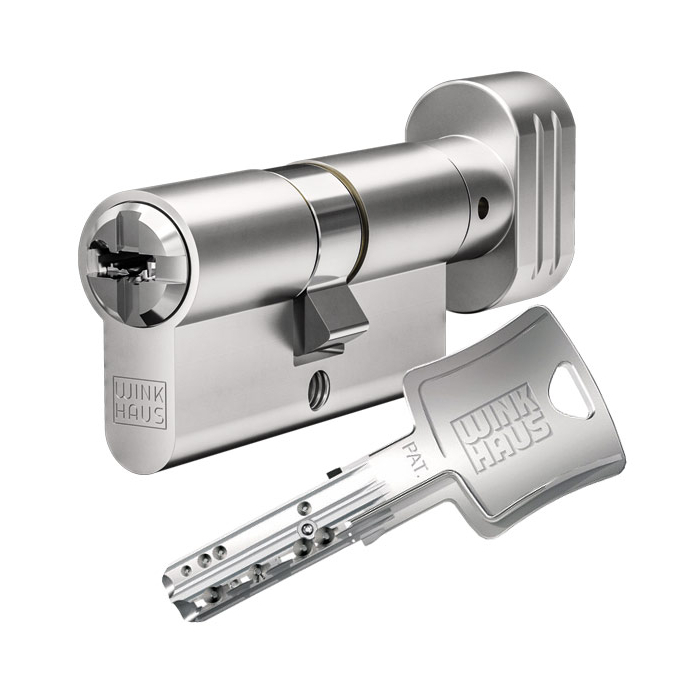

WINKHAUS keyTec ON-tra+ knob cylinder

WINKHAUS keyTec ON-tra+ knob cylinder

The reversible key system WINKHAUS keyTec ON-tra+ offers a very special comfort in key insertion. In addition to the convenient handling, the system has a high locking security, a standard drilling and picking protection and provides a high protection against manipulation.

The reversible key system keyTec ON-tra+ also has another technical security element in the form of WINKHAUS AZE protection. The additional interrogation unit in the cylinder in combination with the additional element mounted in the key promises extra security and flexibility and effectively protects against key duplication and manipulation.

Patent protection until 2034

Basic length

• from 30,7/30,7 mm
• measured from the middle of cam
• extension 5 mm per side
• Ordering information: the knob is always located on the inside of the cylinder.

Execution

• reversible key system
• comfortable horizontal key insertion
• cylinder body: nickel plated
• one-piece locking cam made of sintered steel, non-toxic corrosion protection
• lockable from the outside with key, inside with knob

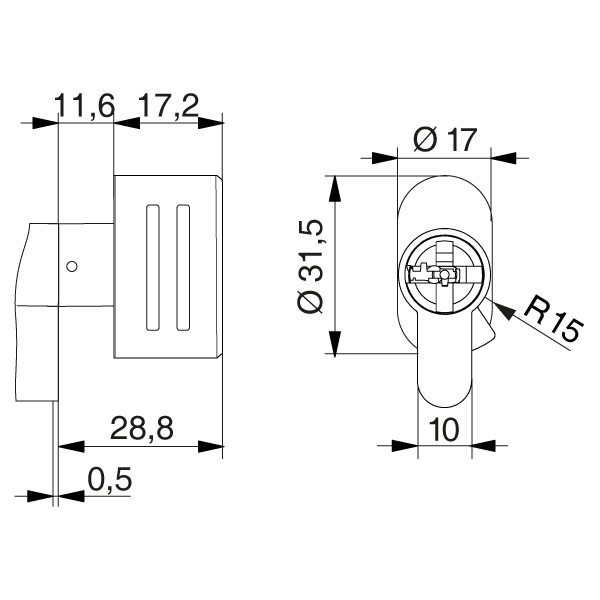

• oval knob, more handy and grippy
• combination with electronic possible (mechatronic key or mechanical key with integrated transponder for the operation of electronic components such as electronic cylinders, access readers or electronic door fittings)

Operational area

• front doors, connecting doors, office doors, internal doors, external doors, apartment doors, gates, etc.
• indoors and outdoors, in conjunction with DIN mortise locks
• individually secured locks, small to medium locking systems
• for use in large objects with comprehensive locking hierarchies

Technical characteristics

• 6 spring-loaded solid pin locking elements on each side
• additional up to 14 springless controlled radial pins on 3 closing levels
• optimal protection through additional interrogation unit AZE protection
• 6-pin system in 5-pin dimension
• standard drilling and picking protection due to hardened, stainless special pins
• profile scanning through catch pin function (manipulation protection)
• high locking security due to tumblers, radial pins and catch pin on 3 locking levels
• cross-shaped groove at the core
• stainless steel core pins
• reinforced key insertion through special cylinder cores
• the key can turn up to 355° empty to find the coupling
• manufactured according to DIN 18252 and EN 1303

Key

• key thickness: 3,4 mm
• increased wear resistance due to nickel silver material
• ergonomically shaped key head for better grip
• 13,3 mm key shaft for the combination of all common safety fittings
• rounded key tip for better insertion comfort
• modern key design
• optimal protection through additional interrogation unit AZE protection

Options / Special equipment

• different cylinder finishes
• drilling protection
• seawater resistant
• low-wear version

Description of the additional options

Scope of delivery

• knob cylinder incl. 3 or more keys
• 1 fixing screw M5
• Mounting tip: make sure that there is a projection of max. 3 mm when mounting!
• security card

Manufacturer:
Aug. Winkhaus SE & Co. KG
August-Winkhaus-Straße 31
48291 Telgte
www.winkhaus.com

How to measure the cylinder length correctly?
You can also find help in determining the correct length in our Help Center for "Cylinder Gauge".
