My Account WINKHAUS keyTec RPE double cylinder

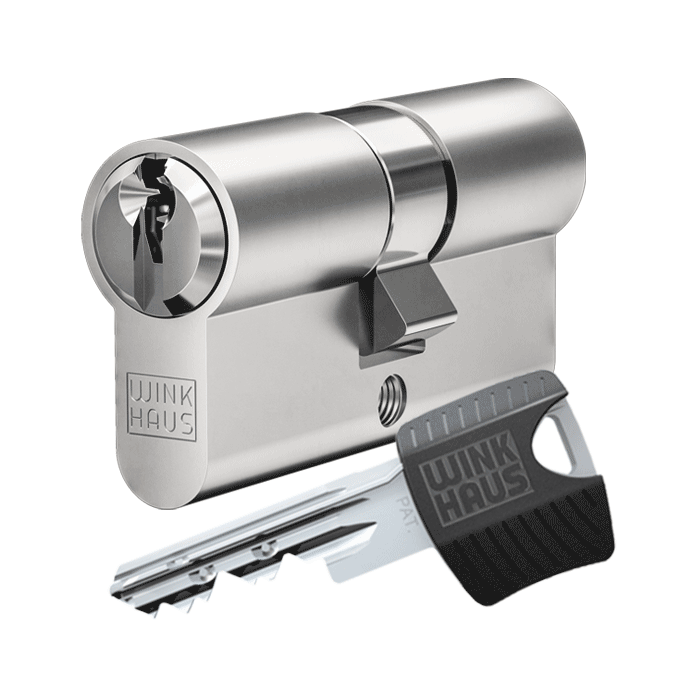

WINKHAUS keyTec RPE double cylinder
With the patented keyTec RPE system from WINKHAUS, sophisticated locking technology can now also be implemented flexibly and economically in private homes.
A new type of copy protection provides the certainty that only authorised persons can make a duplicate key. This is achieved by a specially shaped rib on the key, which is scanned in the locking cylinder by a locking ball (protectBall).
Patent protection until at least 2028
Basic length
- from 30,3/30,3 mm
- measured from the middle of cam
- extension 5 mm per side
Execution
- conventional locking system
- vertical key insertion
- cylinder body: nickel plated
- one-piece locking cam made of sintered steel, non-toxic corrosion protection
- combination with electronic possible (mechatronic key or mechanical key with integrated transponder for the operation of electronic components such as electronic cylinders, access readers or electronic door fittings)
Operational area
- front doors, connecting doors, office doors, interior doors, exterior doors, apartment doors, gates, etc.
- interior and exterior areas, in connection with DIN mortise locks
- private homes
- small-scale enterprises
- shop premises
Technical characteristics
- 5 spring-loaded solid pin locking elements per side
- additionally up to 8 lateral springless controlled radial pins, which are scanned through bore recesses (calottes) on the key and thus improve scanning protection
- protection against drilling through hardened, stainless steel pins
- standard picking protection through special pins
- locking ball (protectBall) with rib check
- multiple paracentric key profiles for increased unlocking security
- core pins made of resistant hard bronze
- reinforced key insertion through special cylinder cores
- manufactured according to DIN 18252 and EN 1303
Key
- key thickness: 3 mm
- serrated key made of wear-resistant nickel silver
- ergonomically shaped key head for better grip
- 13,1 mm key shaft for the combination of all common safety fittings
- specially shaped key tip for less wear
- modern key design
- high-quality plastic cap in different colours for individual adjustment
- caps in different colours optionally available
Description of the additional options
Key caps
- 5 colours: black (standard), blue, yellow, green, red
- material thickness cap: 4,7 mm
- make the key more handy
- easy optical differentiation
- simple management of locking systems through colour assignment
- use exclusively for WINKHAUS keyTec RPE/RPS keys
- the colour can be changed at any time later
- Note the groove on the key! (as shown on the picture)
Options / Special equipment
- different cylinder finishes
- drilling protection
- emergency and danger function (EE)
- seawater resistant with EE function
- freewheel FZG (on request)
Description of the additional options
Cylinder finishes
- standard finish: nickel
- optional: brass matt, brass polished
- for individual design requirements
- if desired, homogeneous appearance of door cylinder and fitting
- Please note:
If a different cylinder finish, different from the standard finish, is ordered, extended production times may occur.
Drilling protection
- drilling protection, both sides according to SKG
- additional carbide pins in the cylinder core and in the cylinder body
Emergency and danger function - double cylinder lockable on both sides
This function enables the locking cylinder to be blocked even if a key with blocking authorisation is inserted on the opposite side.
Seawater-resistant design
- for cylinders that are exposed to strong environmental influences
- only with the emergency and danger function (EE) possible
- Please note:
When ordering this option the delivery time will be extended.
FZG cylinder (on request):
- tested profile cylinder with freewheel function for gear locks in escape door locks
- according to the test guidelines of the testing institute in Velbert (PIV)
- profile cylinders and escape door locks are marked on the product with the letters FZG
- restrictions possible in combination with other optional equipment
Scope of delivery
- double cylinder incl. 3 or more keys
- 1 fixing screw M5
- Mounting tip: make sure that there is a projection of max. 3 mm when mounting!
- security card
Manufacturer:
Aug. Winkhaus SE & Co. KG
August-Winkhaus-Straße 31
48291 Telgte
www.winkhaus.com
How to measure the cylinder length correctly?
You can also find help in determining the correct length in our Help Center for "Cylinder Gauge".
