WINKHAUS keyTec RPE padlock

SKU
WINK.RPE.VH85
Producer No. RPE 85
€48.15
incl. VAT, excl. Shipping Cost
Delivery Time
2 - 3 weeks
proprietary profile with production at the manufactor
Please note that the delivery time may be extended for options marked with *!

Product settings

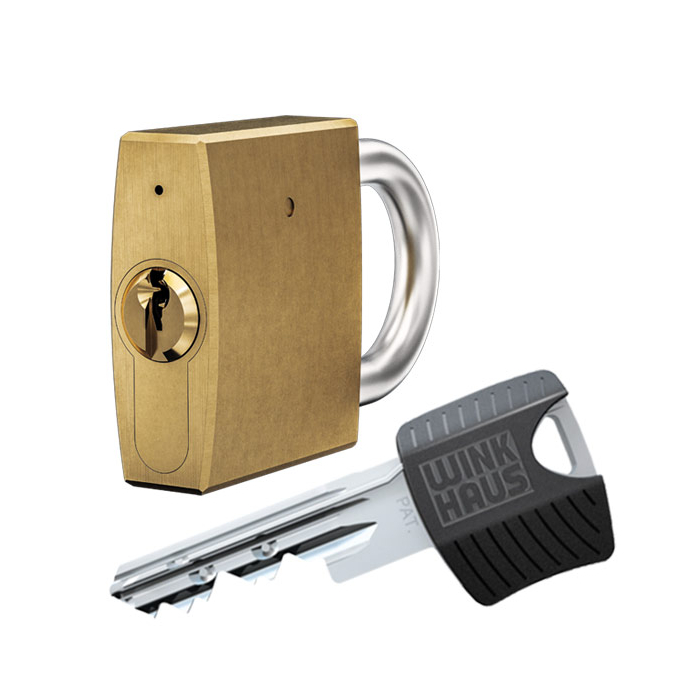

WINKHAUS keyTec RPE padlock type 85

With the patented keyTec RPE system from WINKHAUS, sophisticated locking technology can now also be implemented flexibly and economically in private homes.

A new type of copy protection provides the certainty that only authorised persons can make a duplicate key. This is achieved by a specially shaped rib on the key, which is scanned in the locking cylinder by a locking ball (protectBall).

Patent protection until at least 2028

Measurements:

  • standard shackle height: 28 mm
  • clear width: 30 mm
  • shackle: Ø 8 mm
  • case width: 55 mm

Technical characteristics:

  • 5 spring-loaded solid pin locking elements per side
  • additionally up to 8 lateral springless controlled radial pins, which are scanned through bore recesses (calottes) on the key and thus improve scanning protection
  • protection against drilling through hardened, stainless steel pins
  • standard picking protection through special pins
  • locking ball (protectBall) with rib check
  • multiple paracentric key profiles for increased unlocking security
  • core pins made of resistant hard bronze
  • reinforced key insertion through special cylinder cores
  • without forced closure
  • manufactured according to DIN 18252 and EN 1303

Execution:

  • conventional locking system
  • vertical key insertion
  • cylinder: brass, padlock: brass matt
  • stainless steel shackle
  • combination with electronic possible (mechatronic key or mechanical key with integrated transponder for the operation of electronic components double knob cylinder, access reader, door fitting

Key:

  • key thickness: 3 mm
  • serrated key made of wear-resistant nickel silver
  • ergonomically shaped key head for better grip
  • 13,1 mm key shaft for the combination of all common safety fittings
  • specially shaped key tip for less wear
  • modern key design
  • high-quality plastic cap in different colours for individual adjustment
  • caps in different colours optionally available

Options / Special equipment:

  • different shackle heights (64 mm)

Operational area:

  • simple doors that are locked with a latch (indoors and outdoors)
  • medicine cabinets, filing cabinets
  • cellar and lattice boxes, sheds, chain lock
  • private homes
  • small-scale enterprises
  • shop premises

Scope of delivery:

  • padlock incl. 3 or more keys
  • Security card

Application of key caps

  • use exclusively for WINKHAUS keyTec RPE/RPS keys
  • the colour can be changed at any time later
  • Note the groove on the key! (as shown on the picture)
WINKHAUS keyTec RPS key cap
WINKHAUS keyTec RPS key cap

Key caps:

  • 5 colours: black (standard), blue, yellow, green, red
  • material thickness cap: 4,7 mm
  • make the key more handy
  • easy optical differentiation
  • simple management of locking systems through colour assignment
  • use exclusively for WINKHAUS keyTec RPE/RPS keys
  • the colour can be changed at any time later
WINKHAUS keyTec RPS Key cap
