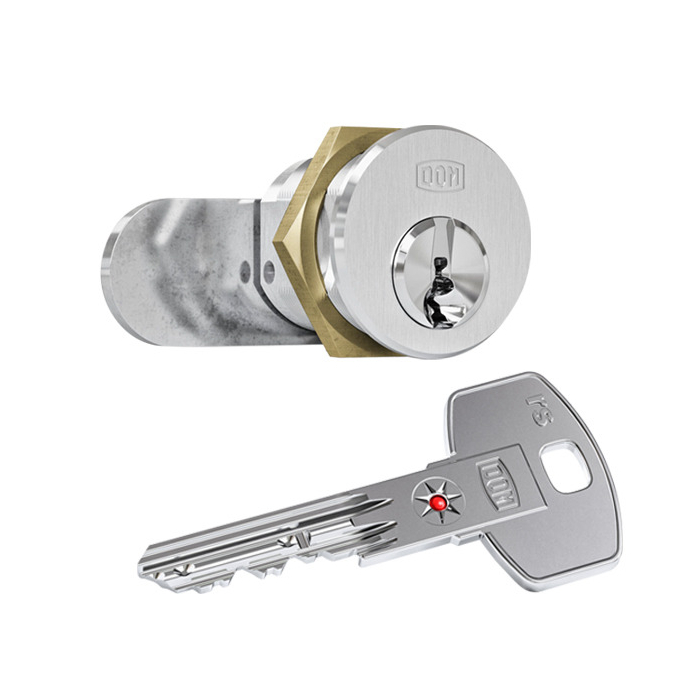

DOM rs Sirius (RS7SI) camlock cylinder
With the DOM rs Sirius (commercial profile RS7SI) you get a high standard of security at an attractive price. The high level of technical copy protection "starline" ensures that no illegal copies of keys are made. In combination with the integrated, high-level drilling and pulling protection as well as the up to 19-fold locking authorisation query, any attempt at manipulation stands (almost) no chance.
Patent protection until 2043 (pending)
Measurements
- installation depth: 33,8 mm
- body length: 25,3 mm
- clamping dimension (standard closing lever): 26,3 mm
- mounting hole: Ø 25 mm lateral reduced to 22,5 mm
Execution
- cylinder body: brass matt nickel-plated
- serrated key system
- vertical key insertion
- key can only be removed when closed (forced closure)
- compatible with DOM electronics (made possible by integrating passive transponder technology into the key bow via a clip tag)
Operational area
- letter box systems, metal cabinets, cassettes, tool compartments, etc.
- cloakroom lockers
- inspection hatches
- vending machines
- small to large companies
- complex locking systems, such as airports, financial buildings, residential buildings, hospitals, educational institutions
Technical characteristics
- bis zu 19-fache Schließberechtigungsabfrage
- up to 6 spring-loaded locking elements made of special brass/hardened steel and up to 11 lateral control pins on each locking side
- technical key copy protection "starline" (integrated on the key) with additional SL-function pin
- high level of manipulation protection
- locking path: 90°, lever adjustable in 45° steps by 360 degrees
Technical key copy protection "starline"
The rs Sirius (RS7SI) locking cylinder offers a high level of security with its "Starline" technical key copy protection and has excellent burglary protection thanks to its high level of drilling and pulling protection.
Key
- key thickness: 2,6 mm
- nickel silver serrated key: corrosion-free and low-wear
- ergonomically shaped
- extended key neck adapted to standard security fittings
- modern design with red coloured ball embedded in the key
- high level of key copy protection thanks to additional technical function query on the key, key catch in the case of manipulation
- compatible with DOM clip tag
Options / Special equipment
- different closing lever variants (standard: closing lever 20 x 3 x 50 mm)
- Always indicate the desired locking path when ordering!
Locking paths
- locking path A: open on the top, closed on the left
- locking path B: open on the top, closed on the right
- locking path E: open on the bottom, closed on the left
- locking path F: open on the bottom, closed on the right
Description of the additional options
Closing lever variants
- DOM closing lever (standard): 20 x 3 x 50 mm, clamping dimension: 26,3 mm
- DOM Renz closing lever: suitable for Renz models, development length: 48,5 mm, clamping dimension: 11,8 mm
- DOM JU closing lever, development length: 52,0 mm, clamping dimension: 11 mm
- Please note that the camlock hole still needs to be filed or milled out.
Scope of delivery
- camlock cylinder incl. ordered keys
- 1 fixing screw
- security card
Manufacturer:
DOM Sicherheitstechnik GmbH & Co. KG
Wesselinger Straße 10-16
D-50321 Brühl/Köln
www.dom-security.com
How to change your camlock cylinder?
We explain in the video how to change your camlock cylinder easily and quickly with the help of our templates.
If it is necessary to adjust the mounting hole, use our template for adjusting the mounting hole. You can find the template in the "Downloads" section.
