My Account DOM rs Sirius (RS7SI) knob cylinder

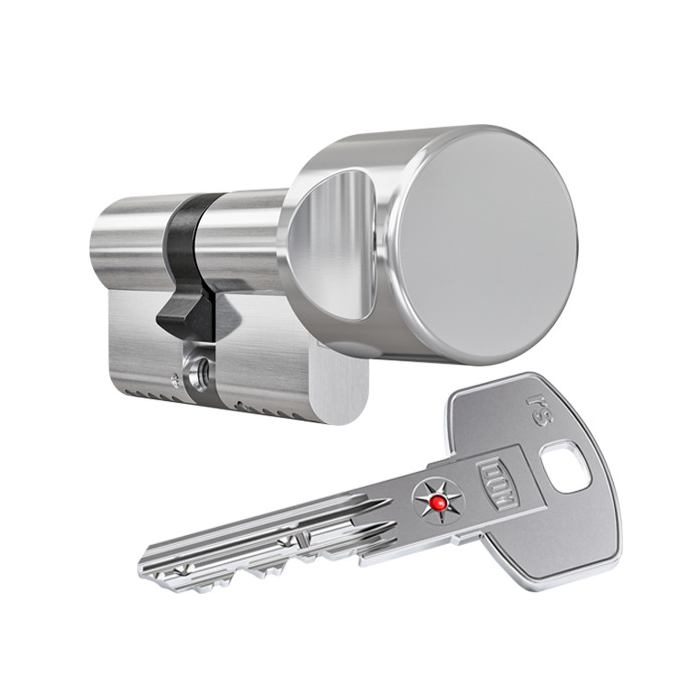

DOM rs Sirius (RS7SI) knob cylinder
With the DOM rs Sirius (commercial profile RS7SI) you get a high standard of security at an attractive price. The high level of technical copy protection "starline" ensures that no illegal copies of keys are made. In combination with the integrated, high-level drilling and pulling protection as well as the up to 19-fold locking authorisation query, any attempt at manipulation stands (almost) no chance.
Patent protection until 2043 (pending)
Basic length
- from 30,5/30,5 mm
- cylinder protrusion: 1,5 mm
- measured from the middle of cam
- extension 5 mm per side
- from a total length of 125 mm, the production is carried out in modular design
- Ordering information: the knob is always located on the inside of the cylinder.
Execution
- cylinder body: brass matt nickel-plated
- serrated key system
- vertical key insertion
- compatible with DOM electronics (made possible by integrating passive transponder technology into the key bow via a clip tag)
Operational area
- internal doors, external doors, front doors, apartment doors with increased security requirements
- small to large companies
- complex locking systems, such as airports, financial buildings, residential buildings, hospitals, educational institutions
Technical characteristics
- up to 19-fold locking authorisation query
- up to 6 spring-loaded locking elements made of special brass/hardened steel and up to 11 lateral control pins on each locking side
- technical key copy protection "starline" (integrated on the key) with additional SL-function pin
- carbide pins in the body + hardened steel pin in the core to protect against drilling
- as standard: high-grade drilling and pulling protection
- high level of manipulation protection
- certified according to DIN EN 1303 160B0C6C
- certified according to SKG**
Technical key copy protection "starline"
The rs Sirius (RS7SI) locking cylinder offers a high level of security with its "Starline" technical key copy protection and has excellent burglary protection thanks to its high level of drilling and pulling protection.
Key
- key thickness: 2,6 mm
- nickel silver serrated key: corrosion-free and low-wear
- ergonomically shaped
- extended key neck adapted to standard security fittings
- modern design with red coloured ball embedded in the key
- high level of key copy protection thanks to additional technical function query on the key, key catch in the case of manipulation
- compatible with DOM clip tag
Options / Special equipment
- different cylinder finishes (polished brass, oxidized bronze (burnished), matt black chrome)
- different knob designs, standard shape K6 (optional: K1, K3, K4)
- increased drilling protection
- modular design
- seawater resistance
Description of the additional options
Cylinder finishes
- finishes (polished brass, oxidized bronze, matt black chrome)
- standard finish: dull nickel
- matt finish on the front side only
- the cylinder knob is delivered in the selected cylinder finish
- for individual design requirements
- if desired, homogeneous appearance of door cylinder and fitting
- Please note:
If a different cylinder finish, different from the standard finish, is ordered, extended production times may occur.
Knob design
- knob shape K6, standard: Ø 29,5 mm x 33 mm
- knob shape K1: Ø 40 mm x 25 mm
- knob shape K3: Ø 40 mm x 34,5 mm
- knob shape K4: Ø 30 mm x 24,5 mm
Increased drilling protection (on both sides)
The cylinder already has a high level of drilling and pulling protection as standard.
Increased drilling and core pulling protection can be optionally selected using carbide pins arranged in several levels in the cylinder body and cylinder core. From 30/35 mm.
Modular design
The modular cylinder is a profile cylinder in which the different cylinder lengths can be easily adjusted by means of suitable intermediate parts of the respective locking system. This also protects against violent "tearing" and "pulling" on the cylinder (modular technology with increased tear-off protection).
Seawater resistance
- for use in marine climate or salty atmosphere
- fixing screw pure brass, cam sintered steel (chemically nickel plated)
- cylinder finish: matt chrome
- possible from cylinder length 30,5/30,5 mm
- restrictions possible in combination with other optional equipment
Scope of delivery
- knob cylinder incl. ordered keys
- 1 fixing screw
- security card
Manufacturer:
DOM Sicherheitstechnik GmbH & Co. KG
Wesselinger Straße 10-16
D-50321 Brühl/Köln
www.dom-security.com
How to measure the cylinder length correctly?
You can also find help in determining the correct length in our Help Center for "Cylinder Gauge".
