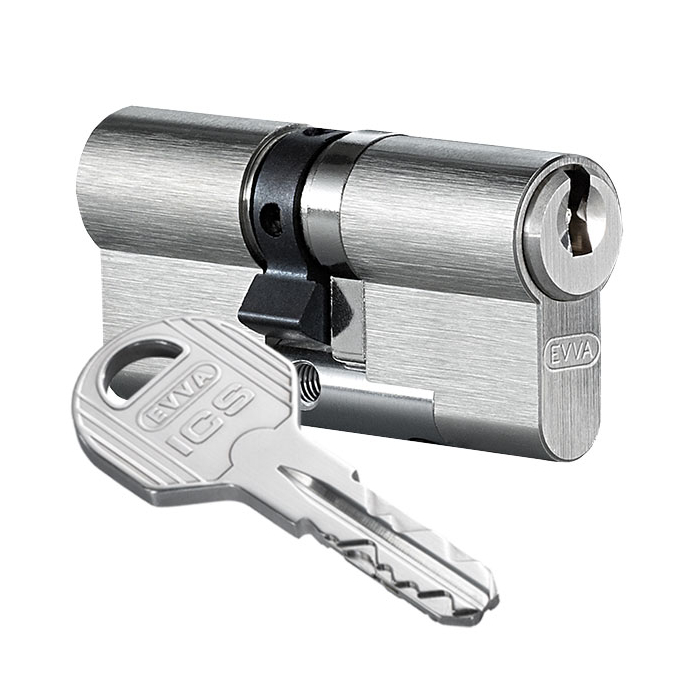

EVVA ICS double cylinder short

EVVA ICS double cylinder short

Strong and reliable, safety with a lot of comfort

With ICS you boost the convenience of your system, can rely on planing and investment security as well as the durability and long service life of the system. ICS is a stable reversible key system that is so powerful that sufficient locking system reserves can be taken into account during the planning stage. ICS is ideal for locking systems with complex structures, e.g. in office buildings, schools or student residences.

ICS offers different locking technologies for high protection: the proven curve system, the durable length profile and the distinctive track system with internal recesses.
The ICS key has increased copy protection and can hardly be copied even with modern 3-D printing processes.

Patent protection until 2029

Basic length:

• from 27/27 mm
• max. up to 27/71 mm
• measured from the middle of cam
• extension in 5 mm steps

Technical characteristics:

• modular design (SYMO)
• the scanning takes place in five tracks through 13 spring-loaded locking elements and the durable length profile
• 2 lateral pin rows with 10 undivided locking pins scan the curves on the key sides
• 1 central row of pins with 3 track pins checks the internal, concealed recesses on the narrow sides of the key
• combination of divided and undivided locking elements
• querying the locking authorisation on the key in four levels
• locking authorisation check at up to 15 key positions and one reversible key profile
• drilling protection: hardened HSS steel pins in the cylinder core, hardened steel ball and 1st locking element made of hardened steel
• pulling protection through chrome nickel connecting axle
• breakaway protection
• picking and scanning protection through specially shaped locking pins
• impact key protection
• cam movement 360 degrees, cam trigger position 30 degrees (right of short side)
• width of cam: 9,3 mm
• certified according to DIN EN 1303:2015 160B0C6D (locking security class 6, attack resistance class 2)
• further certifications on request: VdS, SKG (These certifications are subject to an increased delivery time)

Execution:

• reversible key system
• vertical, easy key insertion
• cylinder body: brass matt nickel plated, cylinder core: base material brass
• combination with electronic locking system possible

Key:

• key thickness: 3 mm
• reversible key made of special resistant nickel silver alloy
• patented concealed curve guidance and optimized curve on the key
• easy key insertion through specially developed key chamfers
• three equally long incisions on the back of the key do not allow any conclusions to be drawn about the depth of the incisions, thus making illegal production of the key almost impossible, even with the most modern 3D printing processes
• high security against decryption
• very resistant, low wear
• high comfort through functional, rounded shape
• optional: ergonomic design key, key with colour dot, key with extended key neck

Options / Special equipment:

• different cylinder finishes
• emergency and danger function
• weather protection
• seawater version
• wear-resistant nickel silver core
• freewheel (on request)

Operational area:

• front doors, connecting doors, office doors, interior doors, exterior doors, apartment doors, gates, wooden doors, aluminium doors, etc.
• for tubular frame door or full leaf door, security doors
• suitable for mortise locks according to DIN, ÖNORM or locks with PZ profile cylinder recess
• office building
• hotels & service stations
• residences
• schools, libraries, associations
• student residences and nursing homes

Scope of delivery:

• double cylinder short incl. 3 or more keys
• fixing screw M5 x 70
• installation tip: When installing, ensure that there is an external projection of max. 3 mm in conjunction with a fitting that cannot be screwed off from the outside!
• Security card
