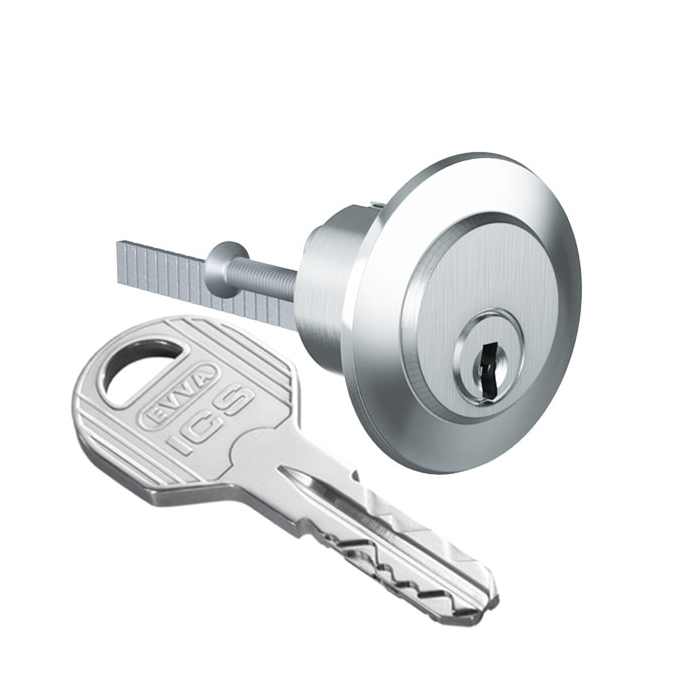

EVVA ICS rim cylinder AZ

Strong and reliable, safety with a lot of comfort

With ICS you boost the convenience of your system, can rely on planing and investment security as well as the durability and long service life of the system. ICS is a stable reversible key system that is so powerful that sufficient locking system reserves can be taken into account during the planning stage. ICS is ideal for locking systems with complex structures, e.g. in office buildings, schools or student residences.

ICS offers different locking technologies for high protection: the proven curve system, the durable length profile and the distinctive track system with internal recesses.
The ICS key has increased copy protection and can hardly be copied even with modern 3-D printing processes.

Patent protection until 2029

Measurements:

  • case length: 25,7 mm
  • rosette: Ø 50 mm
  • mounting diameter: 28 mm
  • cylinder: Ø 34 mm

Technical characteristics:

  • the scanning takes place in five tracks through 13 spring-loaded locking elements and the durable length profile
  • 2 lateral pin rows with 10 undivided locking pins scan the curves on the key sides
  • 1 central row of pins with 3 track pins checks the internal, concealed recesses on the narrow sides of the key
  • combination of divided and undivided locking elements
  • querying the locking authorisation on the key in four levels
  • locking authorisation check at up to 15 key positions and one reversible key profile
  • drilling protection: hardened HSS steel pins in the cylinder core
  • steel balls as drilling protection for the cylinder fixing screws
  • picking and scanning protection through specially shaped locking pins
  • impact key protection
  • locking path: 360°
  • locking bar for door thickness from 38 mm to 70 mm
  • locking bar can be shortened every 5 mm by buckling

Execution:

  • reversible key system
  • vertical, easy key insertion
  • cylinder body and cylinder core: base material brass
  • locking bar: galvanized steel
  • combination with electronic locking system possible

Key:

  • key thickness: 3 mm
  • reversible key made of special resistant nickel silver alloy
  • patented concealed curve guidance and optimized curve on the key
  • easy key insertion through specially developed key chamfers
  • three equally long incisions on the back of the key do not allow any conclusions to be drawn about the depth of the incisions, making illegal key production virtually impossible, even with the latest 3D printing processes
  • high security against duplication of keys
  • very resistant, low wear
  • high comfort through functional, rounded shape
  • optional: ergonomic design key, key with coloured dot, key with extended key neck

Options / Special equipment:

  • different cylinder finishes

Operational area:

  • prepared for EVVA additional box locks of the K900 and K9000 series
  • office building
  • hotels & service stations
  • residences
  • schools, libraries, associations
  • student residences and nursing homes

Scope of delivery:

  • rim cylinder (round cylinder) AZ incl. 3 or more keys
  • rosette Ø 50 mm
  • 2 fixing screws M5 x 60
  • Security card

The reversible key system ICS (Inside Code System) offers high protection thanks to the unique combination of three different locking technologies:

  • the specially shaped, resistant length profile
  • the tried-and-tested curve system that scans the locking authorisation
  • The improved pin system: this consists of concealed, internal recesses on the ICS key body - this is unique worldwide! This makes unauthorised key copies almost impossible.
  • Security card

The scanning takes place in five tracks through 13 spring-loaded locking elements and the durable length profile, thus ensuring a high level of safety.

EVVA ICS cylinder cross-sectionEVVA ICS cylinder cross-section
EVVA ICS key featuresEVVA ICS key features

Locking cylinder security
The innovative technologies of the ICS cylinder offer sustainable protection against illegal opening methods:

  • Picking and scanning protection
    Divided and undivided scanning elements prevent the scanning positions from being detected. Opening the ICS cylinder with locking tools becomes practically impossible. The fictitious opening positions of the lateral system rows virtually exclude scanning of the ICS cylinder.
  • Drilling protection
    The chrome vanadium elements in the ICS cylinder protect it from destructive opening techniques. Additional security elements offer high resistance to attack.
  • Impact key protection
    With this complicated opening method, burglar professionals use a so-called impact key to try to bring the interrogation positions in the cylinder into the correct position.

Cylinder finishes:

  • standard finish: nickel
  • optional: brass (front polished), brown patinated, black patinated
  • for individual design requirements
  • if desired, homogeneous appearance of door cylinder and fitting
Please note:
If a different finish, different from the standard finish, is ordered, extended production times may occur.
nickelnickel
brass polishedbrass polished
brown, patinatedbrown patinated
black, patinatedblack patinated


Key with design cap:

  • colours: black, blue and red, yellow, green and white
  • material thickness design cap: 7,2 mm
  • plastic caps for special design requirements for the keys
  • ergonomic design and high quality for better haptics
  • easy optical differentiation
  • simple management of locking systems through colour assignment
  • consecutive numbering of the key (key with the same locking authorisation receives a consecutive number)
  • used exclusively for EVVA keys
  • factory assembly, subsequent opening and retrofitting is not possible
EVVA 4KS design cap
EVVA ICS design cap color
EVVA ICS design cap

Key with coloured dot:

  • colours: red, blue, green, yellow, brown, black, violet, pink
  • with countersunk colour dot on the key neck
  • for optical differentiation
  • colour dot may differ from the image on the website
EVVA ICS key with colored dot
Key with coloured dot
EVVA ICS key with coloured dot
Key with coloured dot dimensions

Key with extended key neck:

  • specially shaped key
  • for use with armoured fittings
EVVA ICS Key with extended key neck
Key with extended key neck
EVVA ICS Key with extended key neck
Key with extended key neck dimensions
