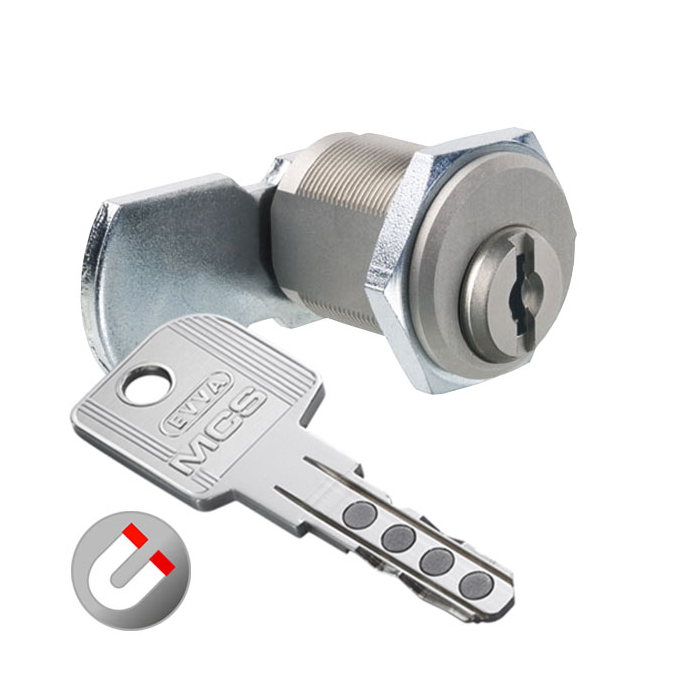

EVVA MCS MB23G camlock cylinder

SKU
EV.MCS.BK.MB23G
Producer No. MCS MB23G
€157.35
incl. VAT, excl. Shipping Cost
Delivery Time
6 - 8 weeks
factory profile
Please note that the delivery time may be extended for options marked with *!

Product settings

EVVA MCS camlock cylinder/ lever cylinder MB23G

MCS (Magnetic Code System) guarantees triple security through one magnetic and two mechanical codings. The permanent magnetisation holds constantly. The cylinder core contains 8 rotating magnetic rotors to which the 4 magnetic pills of the key are assigned. If is the key from keyway removed, they always assume a different position. Each magnetic pill can be magnetised differently on each side.

MCS is ideal for locking systems with high demands on perfection and security. Especially for objects where highly sensitive and irretrievable valuables have to be protected.
Locking system reserves can already be taken into account when planning the locking system.

Patent protection until 2035

Measurements:

  • clamping dimension (H7233): 26,4 mm
  • installation depth: 32,4 mm
  • mounting hole: Ø 22,5 mm lateral reduced to 18 mm
  • cylinder front: Ø 24,8 mm

Technical characteristics:

  • magnetic code system
  • dual authorization queries during the locking process
  • freely rotating magnetic rotors to which the four magnetic pills of the MCS key are assigned
  • 7 additional springless mechanical horizontal locking elements
  • mechanical control by a length profile system and positively controlled locking pin detection on both key sides
  • drilling protection: hardened HSS steel pins in the cylinder core
  • picking and scanning protection
  • impact key protection
  • locking path: 90°, lever can be adjusted in 45° steps by 360 degrees
  • secured against rotation by means of surfaces on both sides of the cylinder
  • for material thickness up to 17 mm
  • with thread M22 for mounting nut SW27
  • lever fastening with 2 screws on the rear side

Execution:

  • reversible key system
  • vertical, easy key insertion
  • high wear resistance
  • locking by closing lever
  • key can only be removed when closed
  • base material: brass
  • closing lever: galvanised steel
  • drive plate, fixing screws: galvanized steel
  • combination with electronic locking system possible

Key:

  • key thickness: 2,4 mm
  • magnetic key made of special resistant nickel silver alloy
  • permanent magnets made of Samarium-Cobalt-5 guarantee a long life
  • maximum key copying security
  • very resistant, low wear
  • optional: ergonomic design key, key with coloured dot

Options / Special equipment:

  • different closing lever variants (standard closing lever H7233: 33 mm)
  • Always indicate the desired locking path when ordering!

Locking paths:

  • locking path A: closed on the left, open on the top
  • locking path B: closed on the right, open on the top
  • locking path E: closed on the top, open on the left
  • locking path F: closed on the top, open on the right

Operational area:

  • wood and metal doors
  • letter boxes with medium cylinder punching, key boxes
  • emergency key boxes, showcase locks
  • cloakroom boxes/lockers
  • luxury trade, research institutions
  • hospitals, international airports
  • residences
  • office building

Scope of delivery:

  • camlock cylinder / lever cylinder MB23G incl. 2 or more keys
  • selected closing lever, mounted
  • fixing nut M22
  • Security card

Magnetic code system - maximum key copying security

The MCS cylinder contains a total of eight freely rotating magnetic rotors to the left and right of the key channel, to which the four magnetic pills of the MCS key are assigned. When an MCS key with a matching magnetic coding is inserted, all magnetic rotors are brought into the correct locking position. 2 mechanic bars above these assign the locking authorisation.
The mechanical control is carried out by a profile system (length profile) and by a positively controlled locking pin detection on both key sides with manipulation control. The permanent magnets made of Samarium-Cobalt-5 guarantee a long service life and cannot be remagnetized or demagnetized by conventional tools.
The unique magnetic keys guarantee maximum security against key copying. Each lock and each key is unique.

EVVA MCS cylinder cross-sectionEVVA MCS cylinder cross-section
EVVA MCS key featuresEVVA MCS key features

Locking cylinder security
The innovative technologies of the MCS cylinder offer sustainable protection against illegal opening methods:

  • Picking and scanning protection
    The freely rotating magnetic rotors of the MCS cylinder are spatially separated from the key channel and therefore cannot be scanned or manipulated. This means that it is not possible to scan the magnetic coding in the MCS cylinder.
  • Protection against drilling
    The carbide elements in the MCS cylinder core provide effective protection against drilling.
  • Impact key protection
    With this complicated opening method, burglar professionals use a so-called impact key to try to bring the query positions in the cylinder into the correct position.

How to change your camlock cylinder?

We explain in the video how to change your camlock cylinder easily and quickly with the help of our templates.
If it is necessary to adjust the mounting hole, use our template for adjusting the mounting hole. You can find the template in the "Downloads" section.

Locking paths:

  • locking path A: closed on the left, open on the top
  • locking path B: closed on the right, open on the top
  • locking path E: closed on the top, open on the left
  • locking path F: closed on the top, open on the right
EVVA Locking paths

Closing lever variants:

  • standard closing lever H7233: A = 33 mm, clamping dimension: 26,4 mm
  • the Renz HB closing lever is suitable for Renz models
  • If nothing else is requested, we order the respective standard dimension of the locking lever length "A" and for the Renz closing lever "A" and "B (marked in blue). If you require a different length, please indicate this in the order comments during the ordering process.
  • Please note that the camlock hole still has to be filed or milled out.
EVVA standard closing leverStandard closing lever H7233
closing lever H91Closing lever H9139
closing lever H92Closing lever H9241


closing lever H87Closing lever H8745
closing lever Renz HB2217Closing lever Renz HB2217


closing lever H73Closing lever H7333
closing lever H94Closing lever H9441
closing lever H88Closing lever H8845


You can find an overview of the locking paths and closing levers under Download to download.



Key with design cap:

  • colours: black, blue and red, yellow, green and white
  • material thickness design cap: 7,2 mm
  • plastic caps for special design requirements for the keys
  • ergonomic design and high quality for better haptics
  • easy optical differentiation
  • simple management of locking systems through colour assignment
  • consecutive numbering of the key (keys with the same locking authorisation are given consecutive numbers)
  • use exclusively for EVVA keys
  • factory assembly, subsequent opening and retrofitting is not possible
EVVA 4KS design cap
EVVA MCS design cap color
EVVA MCS design cap

Key with coloured dot:

  • colours: red, blue, green, yellow, brown, black, violet, pink
  • with countersunk colour dot on the key neck
  • for optical differentiation
  • coloured dot may differ from the image on the website
EVVA MCS key with coloured dot
