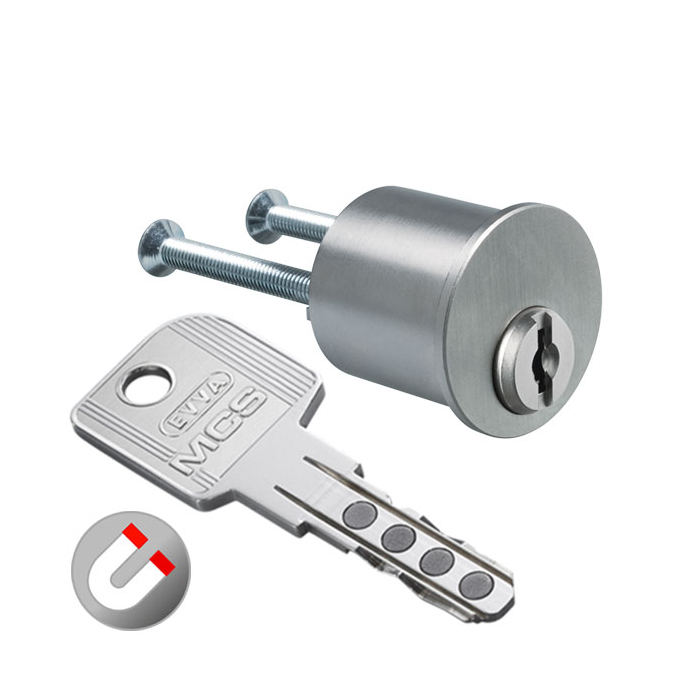

EVVA MCS rim cylinder AZI

MCS (Magnetic Code System) guarantees triple security through one magnetic and two mechanical codings. The permanent magnetisation holds constantly. The cylinder core contains 8 rotating magnetic rotors to which the 4 magnetic pills of the key are assigned. If is the key from keyway removed, they always assume a different position. Each magnetic pill can be magnetised differently on each side.

MCS is ideal for locking systems with high demands on perfection and security. Especially for objects where highly sensitive and irretrievable valuables have to be protected.
Locking system reserves can already be taken into account when planning the locking system.

Patent protection until 2035

Measurements:

  • case length: 24 mm
  • mounting diameter: 28 mm
  • cylinder: Ø 30,2 mm

Technical characteristics:

  • magnetic code system
  • dual authorization queries during the locking process
  • freely rotating magnetic rotors to which the four magnetic pills of the MCS key are assigned
  • 7 additional springless mechanical horizontal locking elements
  • mechanical control by a length profile system and positively controlled locking pin detection on both key sides
  • carbide drilling protection in core and body
  • steel balls as drilling protection for the cylinder fixing screws
  • picking and scanning protection
  • impact key protection
  • locking path: 360°
  • in combination with ABUS additional locks up to door leaf thickness 80 mm
  • locking bar can be shortened every 5 mm by buckling

Execution:

  • reversible key system
  • vertical, easy key insertion
  • cylinder body and cylinder core: base material brass
  • slide coating of all locking elements
  • combination with electronic locking system possible

Key:

  • key thickness: 2,4 mm
  • magnetic key made of special resistant nickel silver alloy
  • permanent magnets made of Samarium-Cobalt-5 guarantee a long life
  • maximum key copying security
  • very resistant, low wear
  • optional: ergonomic design key, key with colour dot

Options / Special equipment:

  • different cylinder finishes
  • rosette Ø 50 mm and clamping plate

Operational area:

  • for ABUS additional locks
  • luxury trade, research institutions
  • hospitals, international airports
  • residences
  • office building

Scope of delivery:

  • rim cylinder (round cylinder) AZI incl. 3 or more keys
  • without rosette (this is optional)
  • 2 fixing screws M5 x 40
  • Security card

Magnetic code system - maximum key copying security

The MCS cylinder contains a total of eight freely rotating magnetic rotors to the left and right of the key channel, to which the four magnetic pills of the MCS key are assigned. When an MCS key with a matching magnetic coding is inserted, all magnetic rotors are brought into the correct locking position. 2 mechanic bars above these assign the locking authorisation.
The mechanical control is carried out by a profile system (length profile) and by a positively controlled locking pin detection on both key sides with manipulation control. The permanent magnets made of Samarium-Cobalt-5 guarantee a long service life and cannot be remagnetized or demagnetized by conventional tools.
The unique magnetic keys guarantee maximum security against key copying. Each lock and each key is unique.

EVVA MCS cylinder cross-sectionEVVA MCS cylinder cross-section
EVVA MCS key featuresEVVA MCS key features

Locking cylinder security
The innovative technologies of the MCS cylinder offer sustainable protection against illegal opening methods:

  • Picking and scanning protection
    The freely rotating magnetic rotors of the MCS cylinder are spatially separated from the key channel and therefore cannot be scanned or manipulated. This means that it is not possible to scan the magnetic coding in the MCS cylinder.
  • Protection against drilling
    The carbide elements in the MCS cylinder core provide effective protection against drilling.
  • Impact key protection
    With this complicated opening method, burglar professionals use a so-called impact key to try to bring the query positions in the cylinder into the correct position.

Cylinder finishes:

  • standard finish: nickel
  • optional: brass (front polished), brown patinated, black patinated
  • for individual design requirements
  • if desired, homogeneous appearance of door cylinder and fitting
Please note:
If a different finish, different from the standard finish, is ordered, extended production times may occur.
nickelnickel
brass polishedbrass polished
brown, patinatedbrown patinated
black, patinatedblack patinated


Key with design cap:

  • colours: black, blue and red, yellow, green and white
  • material thickness design cap: 7,2 mm
  • plastic caps for special design requirements for the keys
  • ergonomic design and high quality for better haptics
  • easy optical differentiation
  • simple management of locking systems through colour assignment
  • consecutive numbering of the key (keys with the same locking authorisation receive consecutive numbers)
  • used exclusively for EVVA keys
  • factory assembly, subsequent opening and retrofitting is not possible
EVVA 4KS design cap
EVVA MCS design cap color
EVVA MCS design cap

Key with coloured dot:

  • colours: red, blue, green, yellow, brown, black, violet, pink
  • with countersunk colour dot on the key neck
  • for optical differentiation
  • coloured dot may differ from the image on the website
EVVA MCS key with coloured dot
