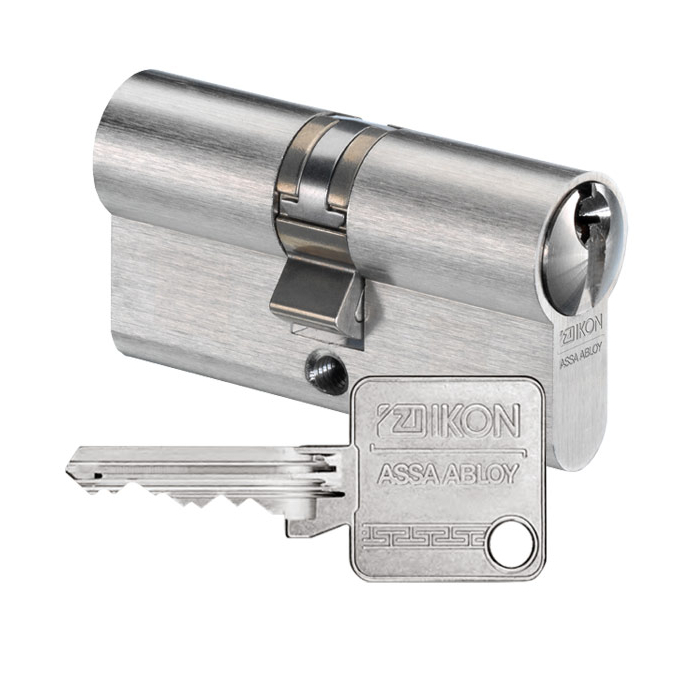

IKON SK6 triangular profile DP06 double cylinder
Premium IKON patented and paracentric triangular profile in system SK6 with 6 active spring-loaded pin locking elements according to DIN EN 1303 and DIN 18252. This profile is based on a long-term patent, which has been developed especially to counteract current and established illegal key-copying techniques, which it impedes to a very high degree. On the key shaft there are triangular profile grooves located on both sides which, due to their special arrangement in the area of the notches of the key, offer not only legal but also increased technical key copying protection.
Patent protection until 2038
Basic length
- from 30/30 mm
- short cylinder: from 28/30 mm up to max. 28/45 mm
- measured from the middle of the cam
- extension 5 mm per side
Execution
- conventional locking system
- vertical key insertion
- cylinder body: brass matt nickel plated
- standard cam position (SST = 30°), other cam positions on request
- combination with electronic possible at any time by means of a transponder key, also as a subsequent extension
Operational area
- front doors, connecting doors, office doors, interior doors, exterior doors, apartment doors, gates, wooden doors, aluminium doors, tubular frame doors, etc.
Technical characteristics
- 6 active, spring-loaded pin locking elements for relocking security
- paracentric key profile ensures unlocking security
- standard drilling protection due to the hardened cylinder body pin and the first set of steel pins
- high protection against picking and bumping due to special profile design and pin combination
- high level of protection against the burglary method of core pulling due to the clawed cam made of sturdy nickel silver
- tested according to DIN EN 1303, DIN 18252
Key
- key thickness: 3 mm
- serrated key
- high-quality and stable nickel silver key with square metal bow
- 13 mm key neck for all standard protective fittings and rosettes
- triangular profile grooves on both long sides of the key provide increased technical protection against key copying
Options / Special equipment
- increased drilling protection class 1 (AB = 1)
- increased drilling protection class 2 (AB = 2)
- emergency and danger function
- low-wear version
- freewheel (on request)
Description of the additional options
Standard drilling protection (AB = 1)
- for medium security requirements
- the first pair of pins made of steel
- one carbide pin in the cylinder body is combined with several carbide elements in the cylinder core
Increased drilling protection class 2 (AB = 2)
- for increased security requirements
- increased protection against drilling due to additional hard metal pins in the cylinder core and cylinder body
Emergency and danger function
This function enables the lock cylinder to be locked even if a key with locking authorisation is inserted on the opposite side.
Low-wear version
Locking cylinders that are exposed to extreme conditions are provided in a special design with a low-wear core pin on request.
Freewheel (on request)
The profile cylinders which have a freely rotating cam are designated as freewheel cylinders.
The cam can be moved freely through 360° when no key is inserted.
When the key is inserted, the spring-loaded clutch engages in the cam. This then allows the cylinder to be closed in the conventional way with the key.
- Usually only necessary for special panic or automatic locks. If in doubt, please check with the door manufacturer.
- for multi-point locks with panic function: latch and bolt must be moved into the lock body when the door is closed with the handle. To ensure this, the cam must be able to turn freely.
- in motor-driven locks and special escape door locks
- restrictions possible in combination with other optional equipment
- from cylinder length 30 / 35 mm possible
Scope of delivery
- double cylinder (type Z531) incl. 3 or more keys
- 1 fixing screw M5 x 85 mm
- security card
Manufacturer:
ASSA ABLOY Sicherheitstechnik GmbH
Berlin distribution
Attilastraße 61 – 67
12105 Berlin
www.ikon.de
How to measure the cylinder length correctly?
You can also find help in determining the correct length in our Help Center for "Cylinder Gauge".
