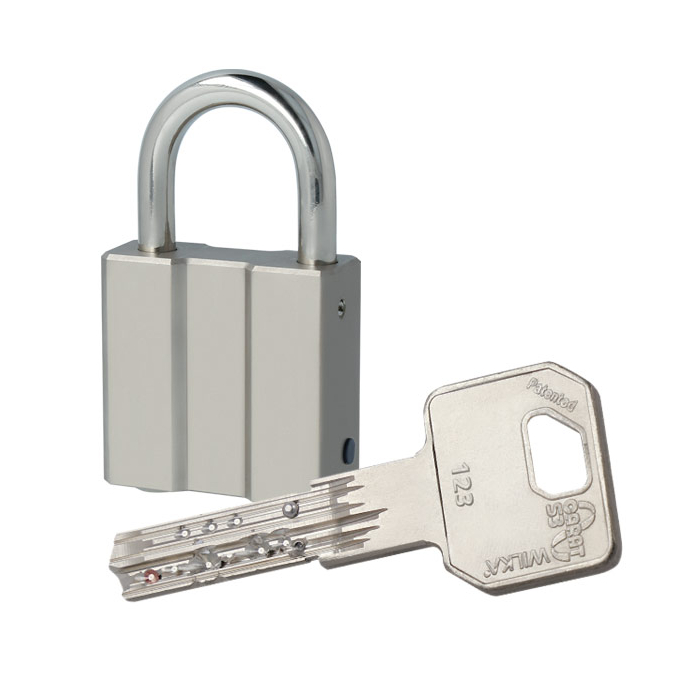

WILKA Carat S3 padlock

WILKA Carat S3 padlock

The Carat S3 system is the new sinus reversible key profile.

SINUS - that is the name of the new system family from WILKA. The new keyways fulfil all expectations that can be posed to a cylinder of a complex keying system.

Patent protection until 2036

Measurements

• standard shackle height: 30 mm
• shackle: Ø 8 mm
• case width: 53 mm

Execution

• comfortable reversible key system
• horizontal key insertion
• padlock: brass matt brushed
• shackle: stainless steel
• with profile insert, exchangeable
• easy integration into the "easy" electronic locking system through mechatronic key

Operational area

• cellar boxes, wardrobe lockers, other closures
• private houses and apartments
• commercial sectors

Technical characteristics

• 6 pin locking elements, class 80
• up to 12 profile control pins in two additional levels
• 1 stylus pin made of hardened steel for drilling protection
• special pins for picking resistance
• with forced locking: lock can only be locked with a key, key can be removed at any time
• seawater resistant
• highest degree of copy protection due to protector pins on key and in cylinder core

Key

• key thickness: 3,55 mm
• paracentric key profile against unauthorized opening with locking tools
• protector nickel silver key made of high-quality, low-wear nickel silver (highest patented key copy protection)
• reversible key
• new key design for use with standard security fittings

Options / Special equipment

• different shackle heights (80 mm)

Scope of delivery

• padlock incl. 1 or more keys
• security card

Manufacturer:
WILKA Schließtechnik GmbH
Mettmanner Str. 58 – 64
42549 Velbert
www.wilka.de
