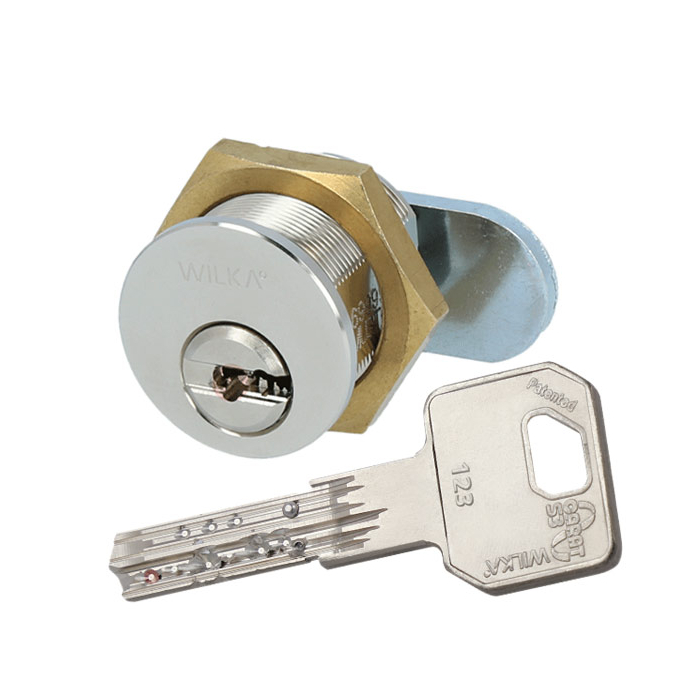

WILKA Carat S3 camlock cylinder 3650
The Carat S3 system is the new sinus reversible key profile.
SINUS - that is the name of the new system family from WILKA. The new keyways fulfil all expectations that can be posed to a cylinder of a complex keying system.
Patent protection until 2036
Measurements
- installation depth: 43 mm
- clamping dimension (lever 001): 31,5 mm
- mounting hole: Ø 27,7 mm lateral reduced to 24,3 mm
Execution
- comfortable reversible key system
- horizontal key insertion
- cylinder body: brass matt nickel plated
- steel closing lever
- key can only be removed when closed (forced closure)
- easy integration into the "easy" electronic locking system through mechatronic key
Operational area
- letter box systems, metal cabinets, cassettes, tool compartments, etc.
- private houses and apartments
- commercial sectors
Technical characteristics
- 6 pin locking elements, class 80
- up to 12 profile control pins in two additional levels
- standard drilling protection (1 body pin and 1 core pin made of hardened steel)
- 1 stylus pin made of hardened steel for drilling protection
- special pins for picking resistance
- highest patented key copy protection due to additional protector pin on the key
- locking path: 90°, closing lever adjustable in 45° steps by 360 degrees
Key
- key thickness: 3,55 mm
- paracentric key profile against unauthorized opening with locking tools
- protector nickel silver key made of high-quality, low-wear nickel silver (highest patented key copy protection)
- reversible key
- new key design for use with standard security fittings
Options / Special equipment
- different cylinder finishes
- different closing lever variants (standard closing lever 001: 21 x 3,5 x 38 mm)
- Always indicate the desired locking path when ordering!
Locking paths
- locking path A: closed on the left, open on the top
- locking path B: closed on the right, open on the top
- locking path E: closed on the top, open on the left
- locking path F: closed on the top, open on the right
Description of the additional options
Cylinder finishes
- standard finish: brass matt nickel plated
- optional: brass polished, brass matt brushed
- for individual design requirements
- if desired, homogeneous appearance of door cylinder and fitting
- Please note:
If a different cylinder finish, different from the standard finish, is ordered, extended production times may occur.
Closing lever variants
- standard closing lever 001: 21 x 3,5 x 38 mm, clamping dimension: 31,5 mm
- A = ... / C = .../ D = .../ angle = ...
- Please note that the camlock hole still needs to be filed or milled out.
Scope of delivery
- camlock cylinder 3650 incl. 1 or more keys
- brass hexagon mounting nut M28 x 1 mm (SW36)
- security card
Manufacturer:
WILKA Schließtechnik GmbH
Mettmanner Str. 58 – 64
42549 Velbert
www.wilka.de
How to change your camlock cylinder?
We explain in the video how to change your camlock cylinder easily and quickly with the help of our templates.
If it is necessary to adjust the mounting hole, use our template for adjusting the mounting hole. You can find the template in the "Downloads" section.
