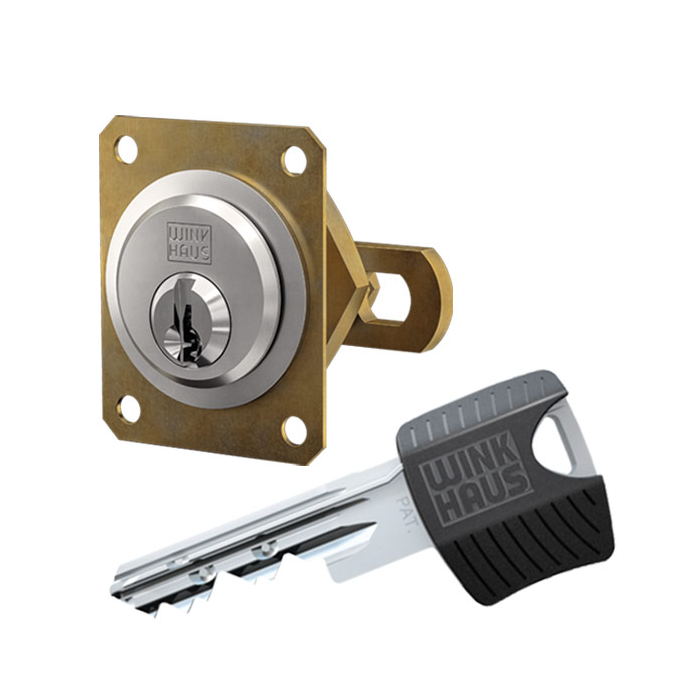

WINKHAUS keyTec RPE camlock cylinder

WINKHAUS keyTec RPE camlock cylinder / lever cylinder

With the patented keyTec RPE system from WINKHAUS, sophisticated locking technology can now also be implemented flexibly and economically in private homes.

A new type of copy protection provides the certainty that only authorised persons can make a duplicate key. This is achieved by a specially shaped rib on the key, which is scanned in the locking cylinder by a locking ball (protectBall).

Patent protection until at least 2028

Measurements:

• installation depth: 40 mm
• clamping dimension (lever H1): 30 mm
• mounting hole: Ø 26 mm lateral reduced to 22 mm

Technical characteristics:

• 5 spring-loaded solid pin locking elements per side
• additionally up to 8 lateral springless controlled radial pins, which are scanned through bore recesses (calottes) on the key and thus improve scanning protection
• protection against drilling through hardened, stainless steel pins
• standard picking protection through special pins
• locking ball (protectBall) with rib check
• multiple paracentric key profiles for increased unlocking security
• core pins made of resistant hard bronze
• reinforced key insertion through special cylinder cores
• locking path: 90°, closing lever path: 90°
• right and left lever adjustable
• for material thickness up to 18 mm
• locking plate
• manufactured according to DIN 18252 and EN 1303

Execution:

• conventional locking system
• vertical key insertion
• cylinder body: nickel plated
• combination with electronic possible (mechatronic key or mechanical key with integrated transponder for the operation of electronic components double knob cylinder, access reader, door fitting

Key:

• key thickness: 3 mm
• serrated key made of wear-resistant nickel silver
• ergonomically shaped key head for better grip
• 13,1 mm key shaft for the combination of all common safety fittings
• specially shaped key tip for less wear
• modern key design
• high-quality plastic cap in different colours for individual adjustment
• caps in different colours optionally available

Options / Special equipment:

• different closing lever variants (standard closing lever H1)
• Always indicate the desired locking path when ordering!

Locking paths:

• locking path A: closed on the left, open on the top
• locking path B: open on the right, closed on the top
• locking path C: open on the left, closed on the bottom
• locking path D: closed on the right, open on the bottom
• locking path E: closed on the top, open on the left
• locking path F: open on the top, closed on the right
• locking path G: closed on the left, open on the bottom
• locking path H: open on the right, closed on the bottom

Operational area:

• letterboxes, cupboards
• private homes
• small-scale enterprises
• shop premises

Scope of delivery:

• camlock cylinder / lever cylinder incl. 3 or more keys
• standard closing lever H1
• mounting nut M26x1
• locking plate
• Security card
