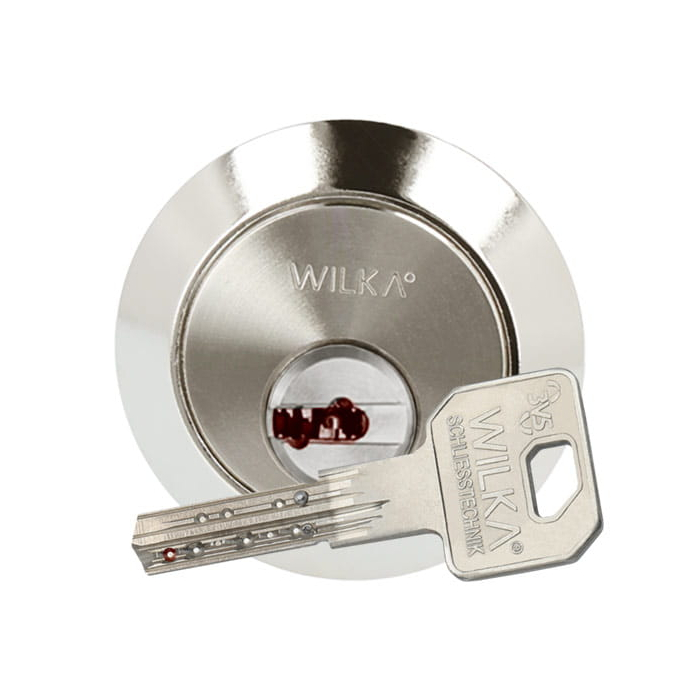

WILKA 3VS rim cylinder 3652

WILKA 3VS rim cylinder 3652

The 3VS system is the new Sinus reversible key profile.

SINUS - this is the name of the new system family from WILKA. The new keyways meet all the expectations put on cylinders in complex locking systems.

Patent protection until 2036

Measurements

• case length: 28 mm
• mounting diameter: 30 mm
• drilling distance: 21 mm

Execution

• comfortable reversible key system
• horizontal key insertion
• cylinder body: brass matt nickel plated
• easy integration into the "easy" electronic locking system through mechatronic key

Operational area

• exterior doors, additional locks, garage doors and box locks
• private houses and apartments
• commercial sectors

Technical characteristics

• 6 pin locking elements, class 80
• up to 12 profile control pins in two additional levels
• standard drilling protection (1 body pin and 1 core pin made of hardened steel)
• 1 stylus pin made of hardened steel for drilling protection
• special pins for picking resistance
• highest patented key copy protection due to additional protector pin on the key
• connecting bar eccentrically arranged

Key

• key thickness: 3,55 mm
• paracentric key profile against unauthorized opening with locking tools
• protector nickel silver key made of high-quality, low-wear nickel silver (highest patented key copy protection)
• reversible key
• new key design for use with standard security fittings

Options / Special equipment

• different cylinder finishes

Description of the additional options

Scope of delivery

• rim cylinder 3652 incl. 3 or more keys
• 2 fixing screws M5
• rosette
• mounting plate
• connecting bar and connecting screws can be shortened during assembly
• security card

Manufacturer:
WILKA Schließtechnik GmbH
Mettmanner Str. 58 – 64
42549 Velbert
www.wilka.de
